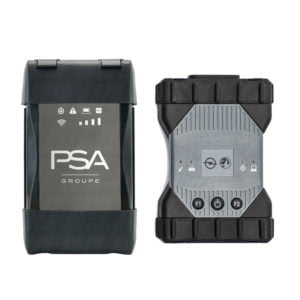

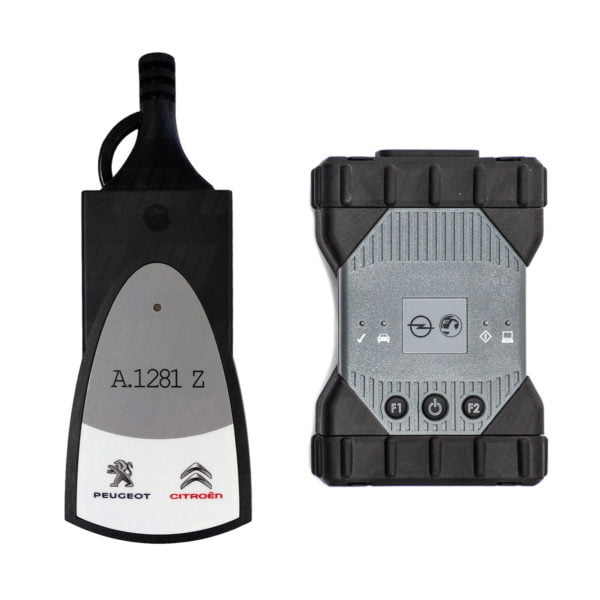

PSA XS Evolution & Vauxhall MDI 2 Interfaces

A sophisticated diagnostic tool for Citroen, Peugeot and the latest generation Vauxhall vehicles with a number of useful functions, including the ability to program new control modules. This interface gives you access to important information, including software/hardware version, manufacturer information and more. This professional diagnostic interface tool contains K-Line, CAN-BUS and SAE J1850 bus (both PWM and VPW) protocols. It’s a perfect tool for garage and workshop settings.

The Vauxhall/Opel MDI 2 is a diagnostic tool for current as well as future vehicles. It’s the latest GM factory scan tool and provides diagnostic and programming functionality. A genuine dealer diagnostics interface tool. Limit your expenses and keep your customers happy by investing in this nifty tool. You won’t need to send vehicles to main dealers, meaning you can limit your site to site travel and in return, save yourself time and money.

Features

PSA XS Evolution

• Clears all stored fault codes and other information
• Auto-scan – Identifies all ECUs (electronic control units) and reads all fault codes
• View live data
• Manual and automatic configuration of ECUs
• Diagnostics is performed via 16 Pin OBD-II connector or via manufacturer-specific connector (only older cars, pre-2001).

Vauxhall MDI 2

• Authentic OEM diagnostics for Vauxhall/Opel and Chevrolet vehicles
• Four LED indicators and signalling device providing technician with continuous visual as well as audible operating status
• Enhanced 802.11 wireless that minimizes dependencies on service department wireless capability infrastructure
• Improved rugged durability
• SmartPower Management system to protect the VCM II in extreme environments
• It conducts the transfer of data between a vehicle’s onboard ECU network with an auxiliary CAN bus

Software

PSA XS Evolution
DIAGBOX Online.

• This software features read identification (shows complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc.)
• Allows you to read fault codes (shows all stored and pending fault codes with explanations (e.g. “Rail pressure – too low pressure”). This program supports report printing or copy to clipboard
• Enables you to clear fault codes and other diagnostic information
• Auto-scan function (complete car scan/test)
• Detects all ECUs installed in vehicle
• Measured Values Program presents live data, including Engine Speed, Battery Voltage, Oxygen Sensor, and Coolant Temperature. These values can either be presented in graphs, 9 values at once, or full listing. Additionally, offline analysis is also available
• Actuator test. This test works by activating particular actuators. For example: turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel
• For light commercial vehicles e.g. Boxer 3, Bipper, Nemo, a separate adapter box will be required for full functionality

Vauxhall MDI 2

• Compatible with Tech2 Win
• GDS2 (Global Diagnostic Software)
• SPS (Service Programming System)
• TIS (Technical Information System)

Requirements

• A laptop or PC with an internet connection
• A service box account
• Service security code will be required to make amendments – see Code Wizard

Vehicle Coverage

PSA XS Evolution

• PSA is compatible with all Citroen cars from 1996 – current
• PSA is compatible with all Peugeot cars from 1996 – current
• PSA is compatible with all Vauxhall cars from 2020 onwards (e.g. Corsa F)

Vauxhall MDI 2

• For all Vauxhall/Opel vehicles from 1996 onwards.

What’s In The Box – PSA XS Evolution

• PSA interface
• ODB vehicle cable
• USB lead

What’s In The Box – Vauxhall MDI 2

• MDI 2 interface
• DLC cable
• USB cable
• Ethernet cable
