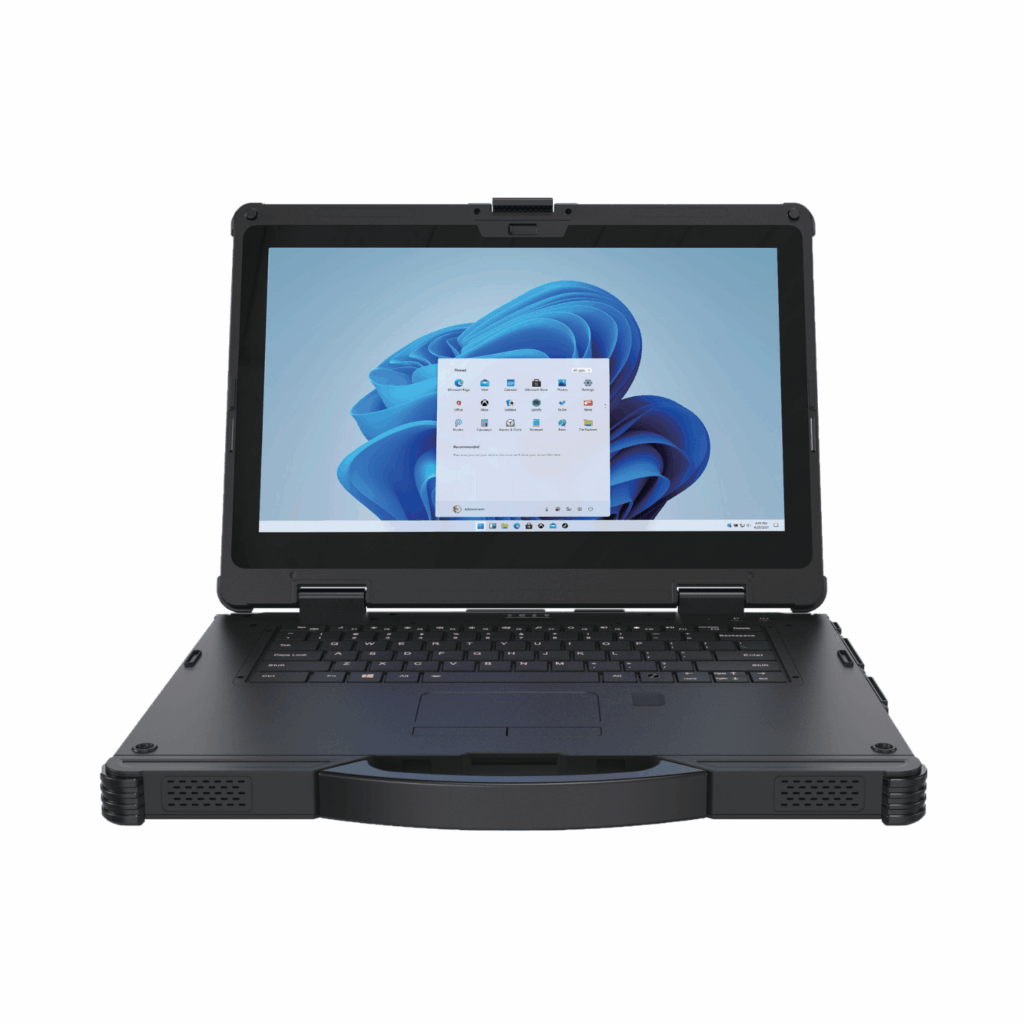

The Maverick X14M is a next-generation rugged diagnostic laptop, purpose-built for modern vehicle diagnostics and programming. Designed and manufactured to exceed the minimum hardware requirements of even the most demanding vehicle manufacturers, it delivers the performance, durability, and connectivity that professional workshops rely on every day.
Suitable for use with all VM software platforms, from Alfa Romeo through to Zeekr. The X14M provides a stable and dependable foundation for OEM-level diagnostic work, software flashing, coding, and security gateway access.
Key Features
- Operating System: Windows 11 Pro
- Processor: Intel® Core™ Ultra 7 155H (16 cores, up to 4.8 GHz)
- Graphics: Intel® Xe LPG integrated graphics
- Memory & Storage: 32 GB DDR5 RAM and 512 GB SSD storage for fast, stable multitasking
- Rugged Design: Certified to MIL-STD-810H and IP65, resistant to dust, vibration, and temperature fluctuations
- Display: 14” Full HD (1920×1080) IPS sunlight-readable display (1000 nits), optional 10-point touch and glove operation
- Battery: Dual hot-swappable batteries (53 Wh + 14.4 Wh) for continuous field operation
- Connectivity:
-
1 × HDMI 2.0a (mini)
-
1 × USB 3.2, 1 × USB 3.0, 1 × USB 2.0, 1 × USB Type-C (Thunderbolt 4)
-
2 × RJ45 Ethernet ports (10/100/1000M adaptive)
-
1 × RS232 Serial Port (essential for legacy diagnostic tools)
-
1 × MicroSD slot, 1 × SIM slot, 1 × 3.5 mm audio jack
-
- Wireless Communication: Wi-Fi 6, Bluetooth 5.1, integrated GPS, optional 4G/5G module
- Security: Built-in fingerprint reader, optional NFC module, and anti-theft lock slot
What’s in the Box
- Maverick X14M Rugged Laptop (Windows 11 Pro)
- AC Adapter (100–240 V)
- Removable Main Battery (53 Wh)
- Secondary Internal Battery (14.4 Wh)
- User Manual
