Tesla Toolbox Dealer Diagnostic

The Tesla Toolbox Dealer Diagnostic is Tesla’s official diagnostic software and hardware package for professional workshops, dealers, and EV specialists. It provides dealer-level access to Tesla’s vehicle systems, enabling you to run advanced diagnostics, perform software updates, calibrate ADAS systems, and configure ECUs exactly as Tesla service centres do. Paired with the correct Tesla Cable Kit, you can connect to any Tesla model and year currently on the road, including the latest Model S, Model 3, Model X, Model Y, and Cybertruck.

Specifications

• Software: Tesla Toolbox (latest dealer edition)
• Connectivity: Secure online access to Tesla servers
• Functions:
  • Full system diagnostics and troubleshooting
  • Firmware and software updates
  • ECU programming and configuration
  • Calibration procedures (ADAS, sensors, cameras)
  • Service bulletin and repair manual integration
• Interface: Multi-language support, intuitive navigation
• Connection: USB to Tesla-approved VCI, with required cable kit
• Hardware compatibility: Works with OEM-approved Tesla diagnostic interfaces
• Operating System: Windows 10/11 (64-bit)
• Internet Requirement: Stable broadband connection for cloud-based functions
• Licensing: Official Tesla dealer-level license

Why Buy?

• Dealer-Level Access – Same tools & capabilities as Tesla service centres.
• Full Vehicle Coverage – With the right cable kit, you can cover every Tesla model from 2012 to the newest releases.
• OEM-Approved – Compliant with Tesla’s service procedures and warranty requirements.
• Boost Workshop Capability – Add Tesla servicing to your business without outsourcing.
• Future-Ready – Stay compatible as Tesla updates its systems and models.

Maverick Diagnostics offers support for tool setup, registration, and software loading when purchased through us.

Cable Kit Options

Tesla vehicles use different diagnostic connectors depending on the model and year. You’ll need the correct cable kit to connect the Tesla Toolbox to the vehicle.

Standard Cable Kit

Covers most older Tesla vehicles:

• 1013230-00-A

  • Model S: June 2012 – Feb 2021

  • Model X: Sept 2015 – Oct 2021

• 1137658-00-C

  • Model 3: July 2017 – Dec 2021

  • Model Y: March 2020 – Dec 2021

Full Cable Kit (Includes Standard Kit + Additional Cables)

Covers all Tesla models including the latest:

• Everything in the Standard Kit

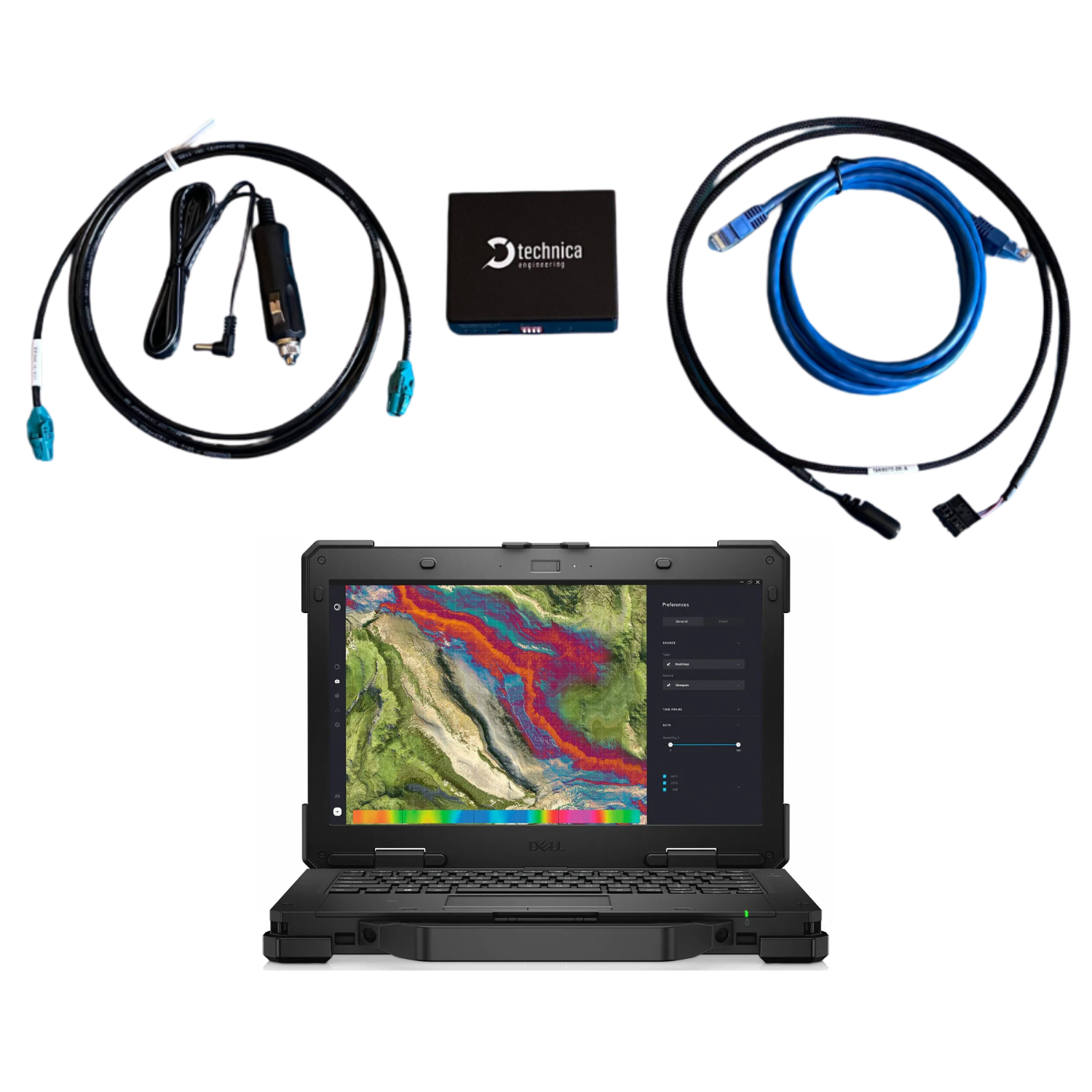

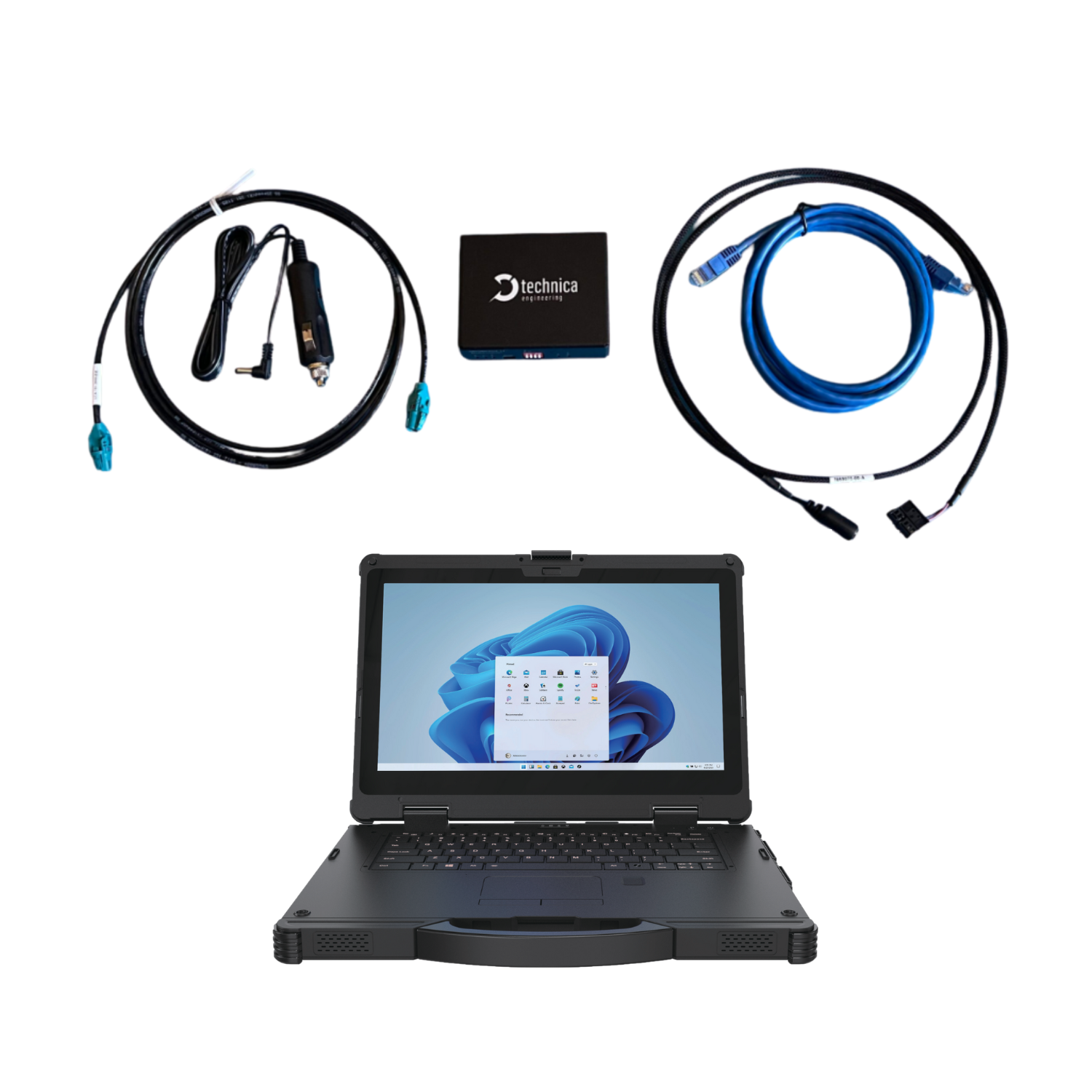

• 1669075-00-A (Special kit with Media Converter 1000Base T1 & cables)

  • Model S: Feb 2021 – Feb 2022

  • Model X: Oct 2021 – Feb 2022

• CAT6A Cable (part of 1669075-00-A)

  • Model S: Feb 2022 – April 2024

  • Model 3: Dec 2021 – Oct 2023

  • Model X: Feb 2022 – April 2024

  • Model Y: Dec 2021 – April 2024

• 62PROJ1 DoiP-J1962 (Diagnostics over IP)

  • Model S: April 2024+

  • Model 3: Oct 2023+

  • Model X: April 2024+

  • Model Y: May 2024+

  • Cybertruck: Jan 2024+

Toolbox Warning

Model Y vehicles manufactured before April 2024 are equipped with both:

• An OBD-II J1962 port (not supporting DoIP)

• A separate diagnostic port

Note: The part 1669075-00-A is not listed on Tesla’s standard parts ordering system and is supplied directly through our channel. All items are in stock.
