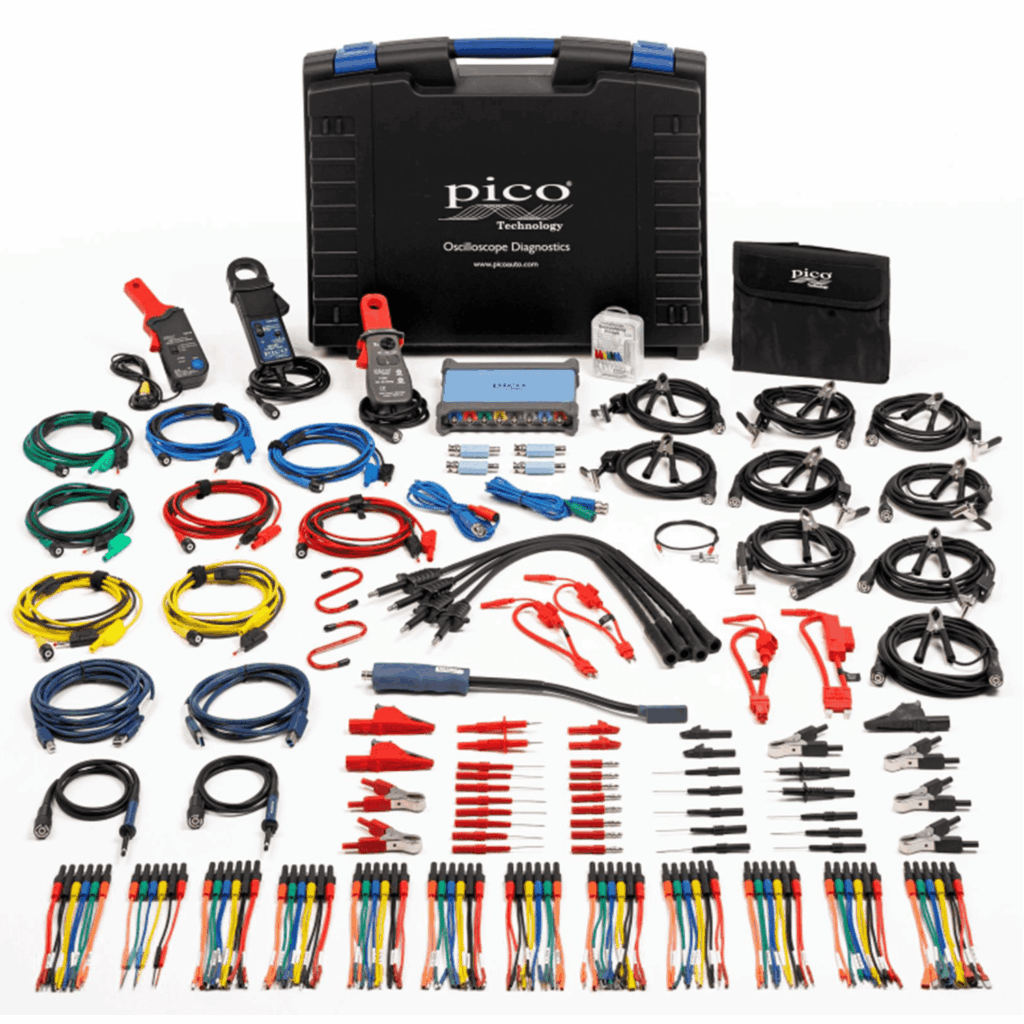

The PQ184 PicoScope 4823 8-Channel Professional Diagnostic Kit includes the PicoScope 4823, a high-resolution, 8-channel automotive oscilloscope for comprehensive diagnostic needs. With a common-ground configuration, a maximum input range of 50V, and a sample rate of 80MS/s (10MS/s if using all 8 channels), the PicoScope 4823 offers an affordable, portable solution for multi-input applications. Ideal for diagnosing V6/V8 cam timing, trucks, construction, and agriculture equipment, as well as faults on multiple serial buses, this oscilloscope is equipped with powerful software tools to handle extensive data efficiently.
PC Requirements:
- Processor: 2 GHz
- Memory: 4 GB
- Screen Resolution: Minimum 1080P (1920X1080)*
- Operating System: 64-bit edition of Windows 10 or 11 (not Windows RT or S)
- Ports: USB 3.0 (USB 2.0 compatible)
- Free Disk Space: 2 GB
*Lesser screen resolutions may work but will make some features inaccessible.
Appications
The PicoScope 4823 is perfect for:
- V6/V8 Cam timing (4/6 cams plus crank, and sometimes a WPS), and VVT timing systems.
- Trucks, construction, and agricultural equipment requiring simultaneous electrical and hydraulic measurements on multiple valves.
- Full system diagnosis on components (including power, ground, signals, current).
- Diagnosing faults on multiple serial buses (CAN, CAN FD, LIN, FlexRay).
Compatibility
The PicoScope 4823 is compatible with:
- Windows 10
- Windows 8 (not Windows RT)
- Windows 7
Why Buy?
The PicoScope 4823 is a cost-effective, portable solution for multi-input automotive diagnostics. Its 8 high-resolution, high-speed channels make it ideal for a wide range of applications, while the powerful PicoScope software provides extensive data handling capabilities. This comprehensive kit includes all necessary accessories for thorough diagnostics, making it a versatile and valuable tool for any automotive professional.
