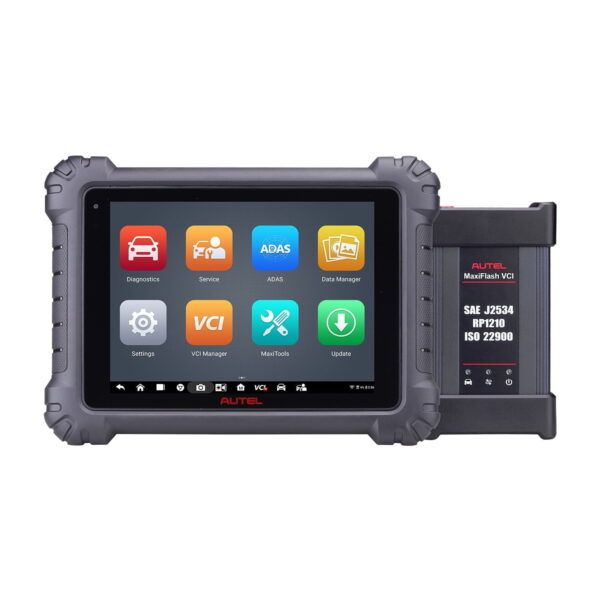

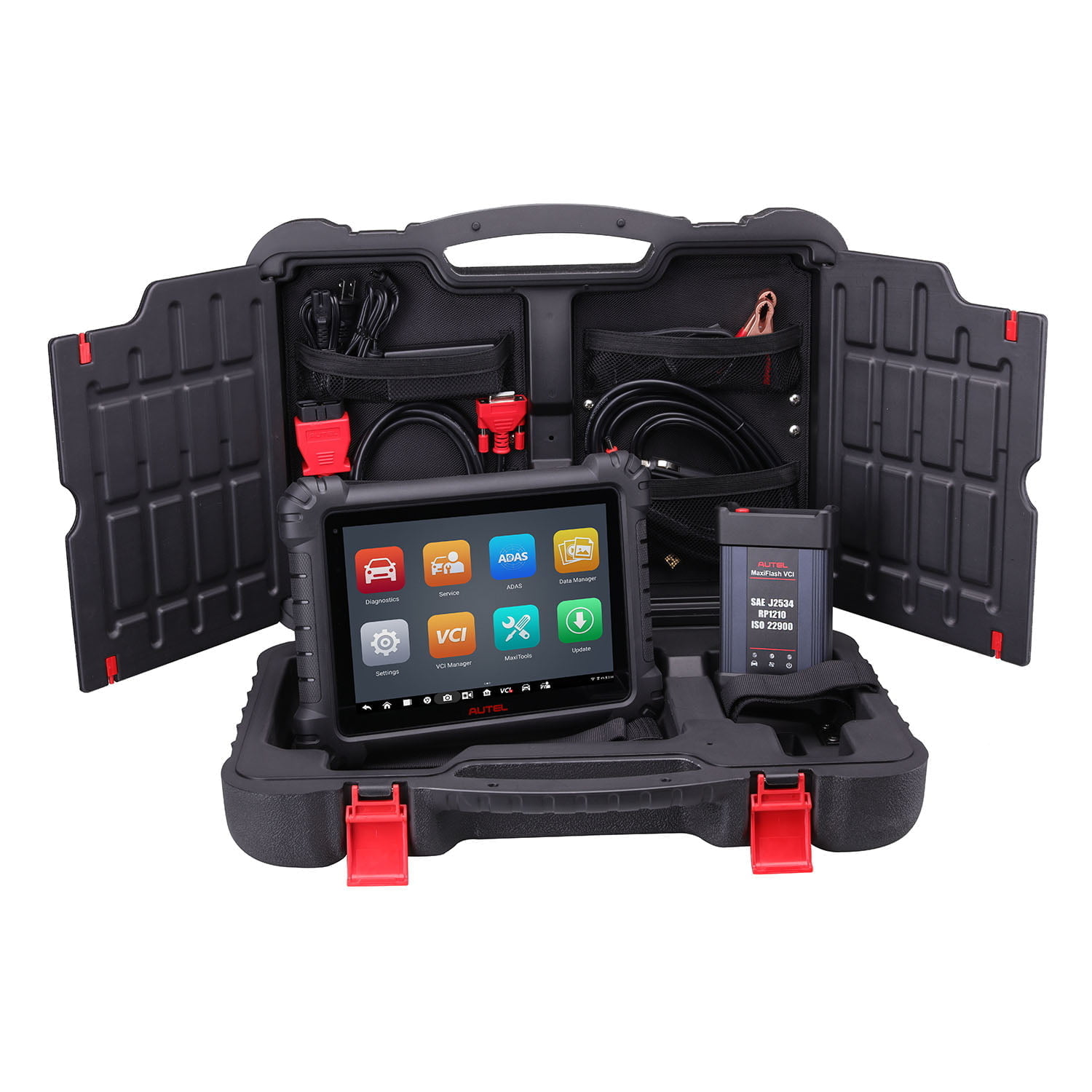

The Autel MS909 S2 is an advanced automotive diagnostic tool, designed for professional technicians, offering powerful features and exceptional performance. Unlike the Ultra S2 and MS919 S2 , the MS909 S2 omits oscilloscope with the multi-purpose MaxiFLASH VCMI2, but instead comes with the MaxiFlash VCI2, which supports essential protocols like D-PDU, RP1210, CANFD, J2534, and DoIP
The MS909 S2 combines diagnostics, service, extensive live data, channel coding, and ECU re-flashing. Additionally, the MS909 has programming options directly within the tool software itself, focusing on BMW and Mercedes. It also features new specialist software capabilities; Repair Assist, DTC Analysis, Topology Mapping, and Relevant Cases.
Features

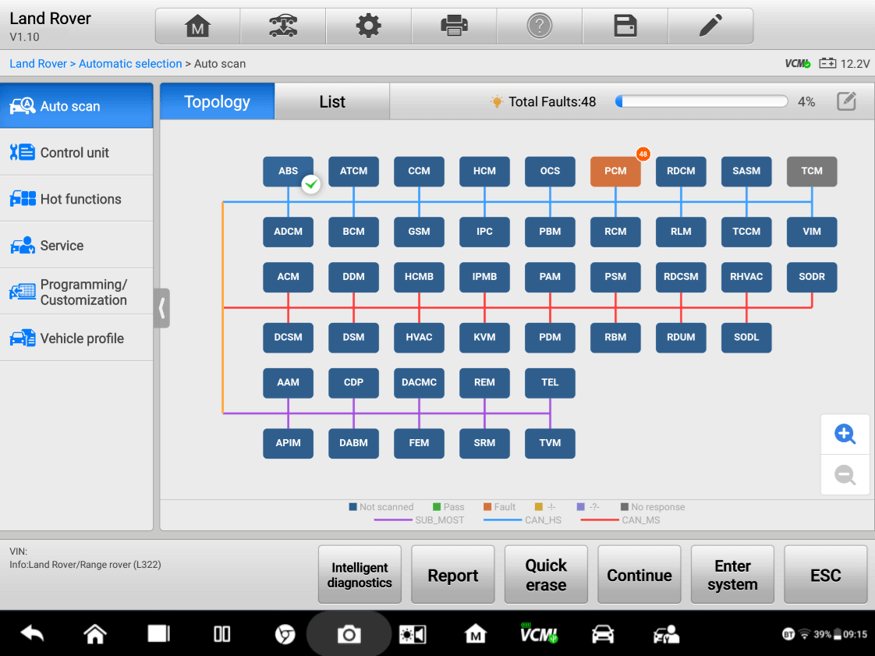

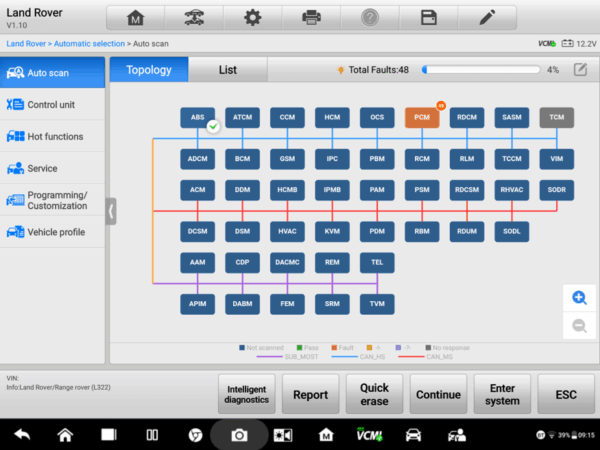

System Topology
The Autel exclusive System Topology Mapping V3 Software shows a colour-coded topology display for all vehicle systems and their status on one page. This display illustrates the structure of communication between modules and provides access to any DTCs by clicking on a system module.
Currently available for BMW, Ford, Volkswagen, Audi, GM, Chrysler, Nissan, Honda, Toyota Lexus, Jaguar, Land Rover, Mercedes Benz, Hyundai, Kia, and Volvo.

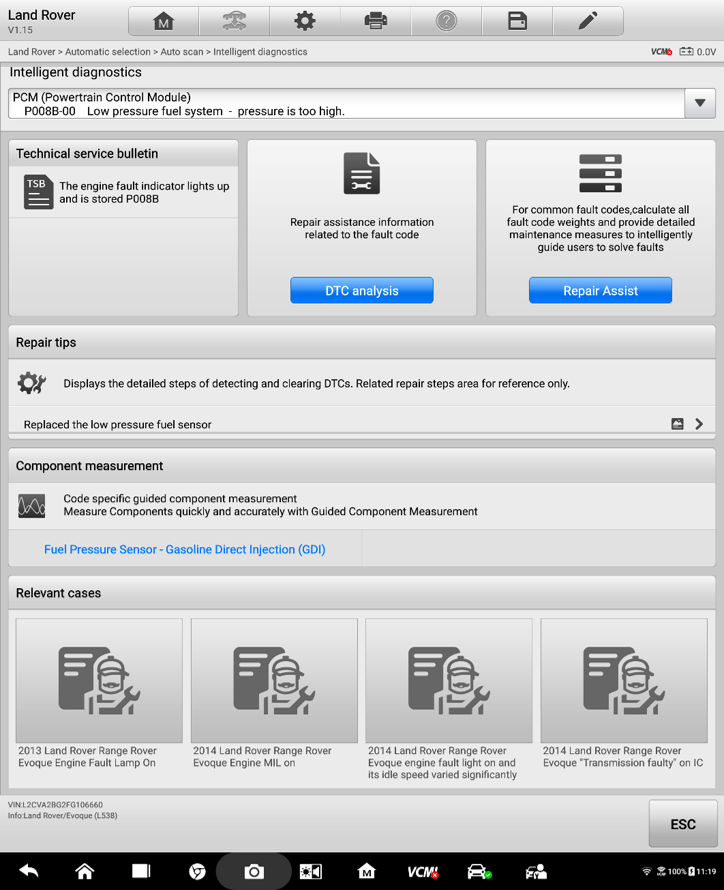

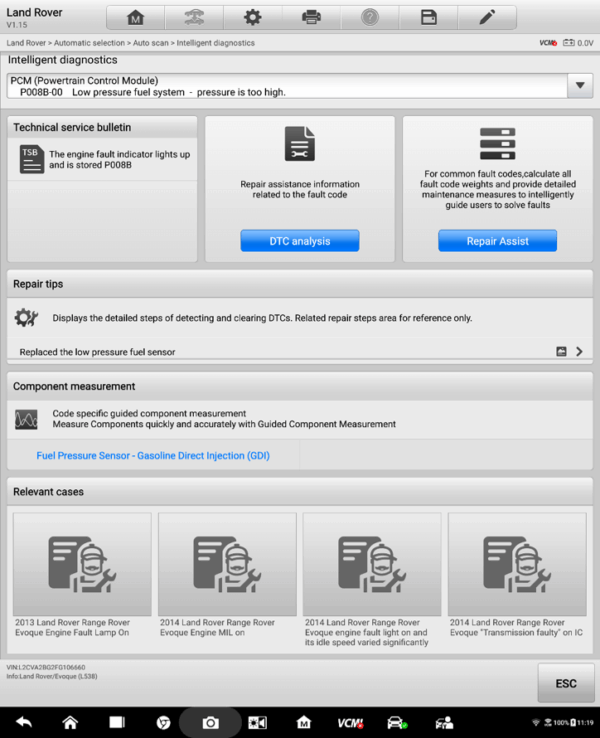

Repair Assistant
The Repair Assist Software lists recommended tests with their completion status and priority level. The higher the priority, the sooner the components should be tested. Prioritisation is automatically sorted to provide the best solution path.
Guided Maintenance provides a troubleshooting process that guides the user to solve maintenance problems in a logical order.
Accurate recommendation automatically matches the required circuit diagram and pin position for the fault.
In cases with multiple inspection steps, you can carry out the inspection step by step or skip unnecessary steps.
Currently available for BMW, JLR, GM, Ford, Chrysler, and Porsche.
Relevant Cases
The software automatically recommends repair processes that may be relevant to the vehicle and fault. These repair cases/suggestions give the technician great insight when diagnosing and repairing vehicle faults.
Tech Services Bulletins show official announcements issued by vehicle manufacturers regarding common problems, including vehicle modules, DTCs, repair methods, program updates, and recall strategies.
Currently available for Ford, GM, FCA, Toyota, Lexus, VW, Nissan, Honda, BMW, Mercedes, Audi, Hyundai, and Kia.
DTC Analysis
The DTC Analysis describes possible causes and solutions for vehicle faults.
Currently available for GM, Ford, Toyota, Lexus, Nissan, Honda, VW, Audi, BMW, FCA, and Mercedes.
