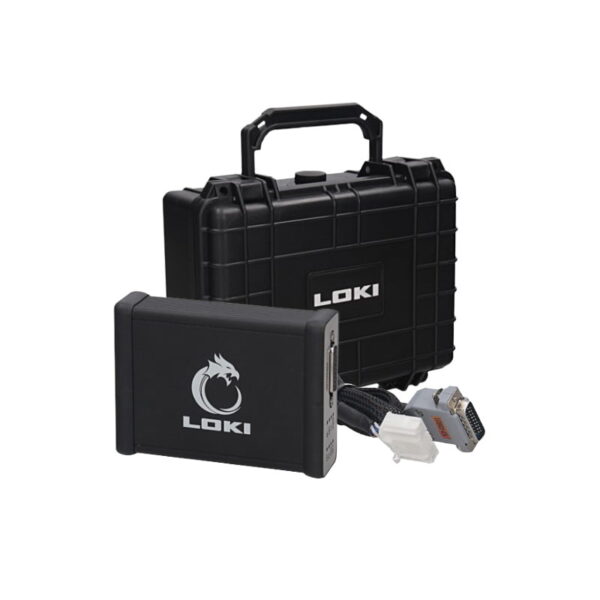

Loki Tesla Diagnostic Kit

The LOKI diagnostic tool can be used to carry out diagnostics, maintenance, repairs and configuration of Tesla vehicles including Model 3, Model X, Model S and Model Y.

£3,995.00£5,643.24 ex. VAT

Buy now

Specialist Tesla training course

(1-3 persons)

Video

Play Video

LOKI Tesla Diagnostic Kit

Description

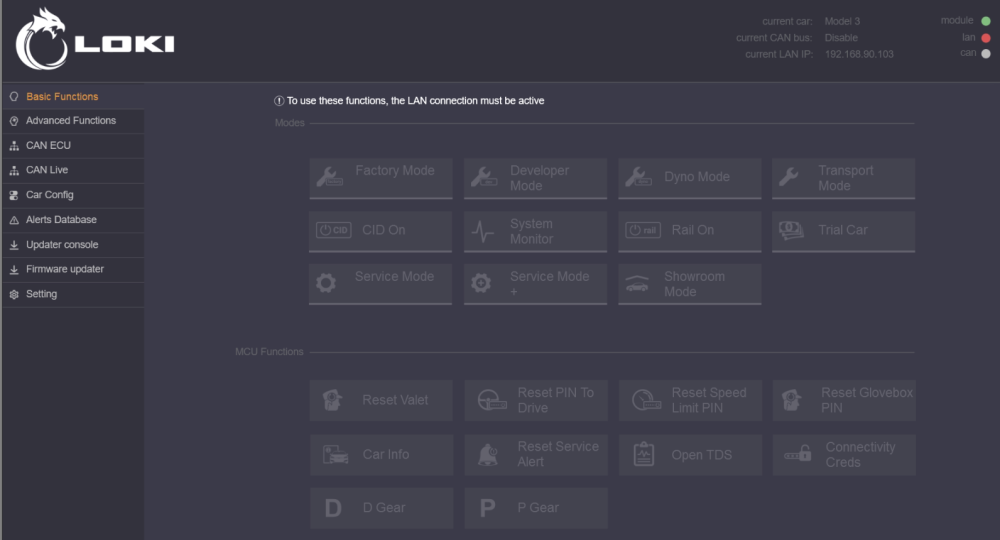

The Loki Tesla Diagnostic Tool is the first supported Aftermarket Tesla tool, used to carry out diagnostics, repair and configuration of Tesla vehicles. The Loki comes with its custom-built user-friendly interface with automatic software updates and supports features like Live data from CAN, self-testing and calibration, and read and clear alerts.

For full functions, please visit www.lokidiagnostics.com

Vehicle Coverage

  • Model S
  • Model 3
  • Model X
  • Model Y

All connection leads included.

Requirements

Tesla does not have standard diagnostic connectors, FYI the ODB connector on an early model X does nothing. You will need training to connect and use the tool; in some cases, vehicle disassembly is needed. The diagnostics laptop/PC needs to have several individual configurations done at use; this is included in the bundle price.

The software can be used on Windows 10 and 11.

Option “Y “cable is available for permanent installation in models 3’s and model Ys as connection requires dismantling the glove box to access CID IC.

The tool will require registration with LOKI before the software is unlocked.

No ongoing software cost, there will be a cost for future upgrades TBA

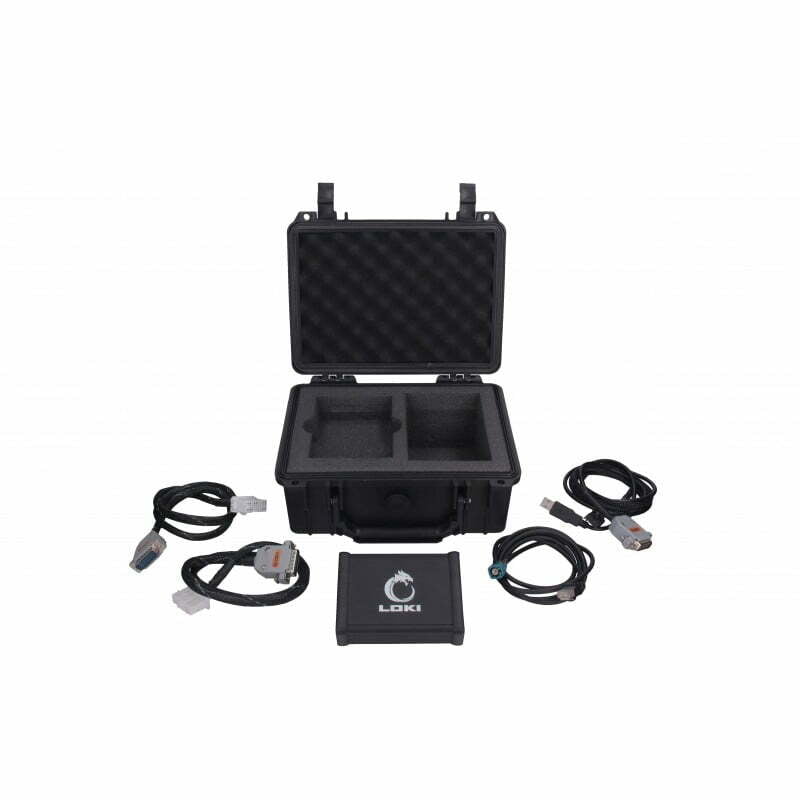

What’s In The Box

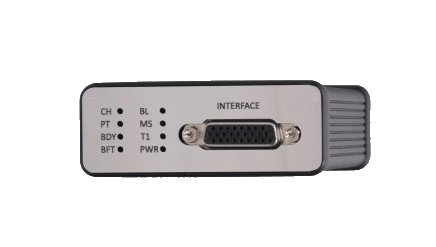

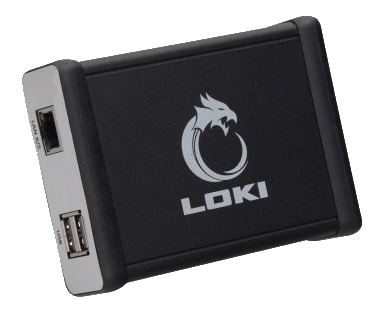

  • LOKI Tesla Diagnostic Tool Module
  • LC001-CS  –  Cable СAN for connection of Tesla Model S Pre-facelift (<2015) to Loki
  • LC002-LS  – Cable LAN for Tesla Model S Pre-facelift (<2015), Tesla Model S Facelift, Model X
  • LC003-CХ  – Cable CAN for connection of Tesla Model S Facelift, Model X to Loki
  • LC004-L3  – USB port located on the vehicle. LAN terminal of the cable connects to the terminal on MCU
  • LC006-C3 – Cable connects Loki with CAN bus of Tesla Model 3 and Model Y with the usage of cable LC003-CХ
  • OptionalPanasonic Toughbook CF-D1
