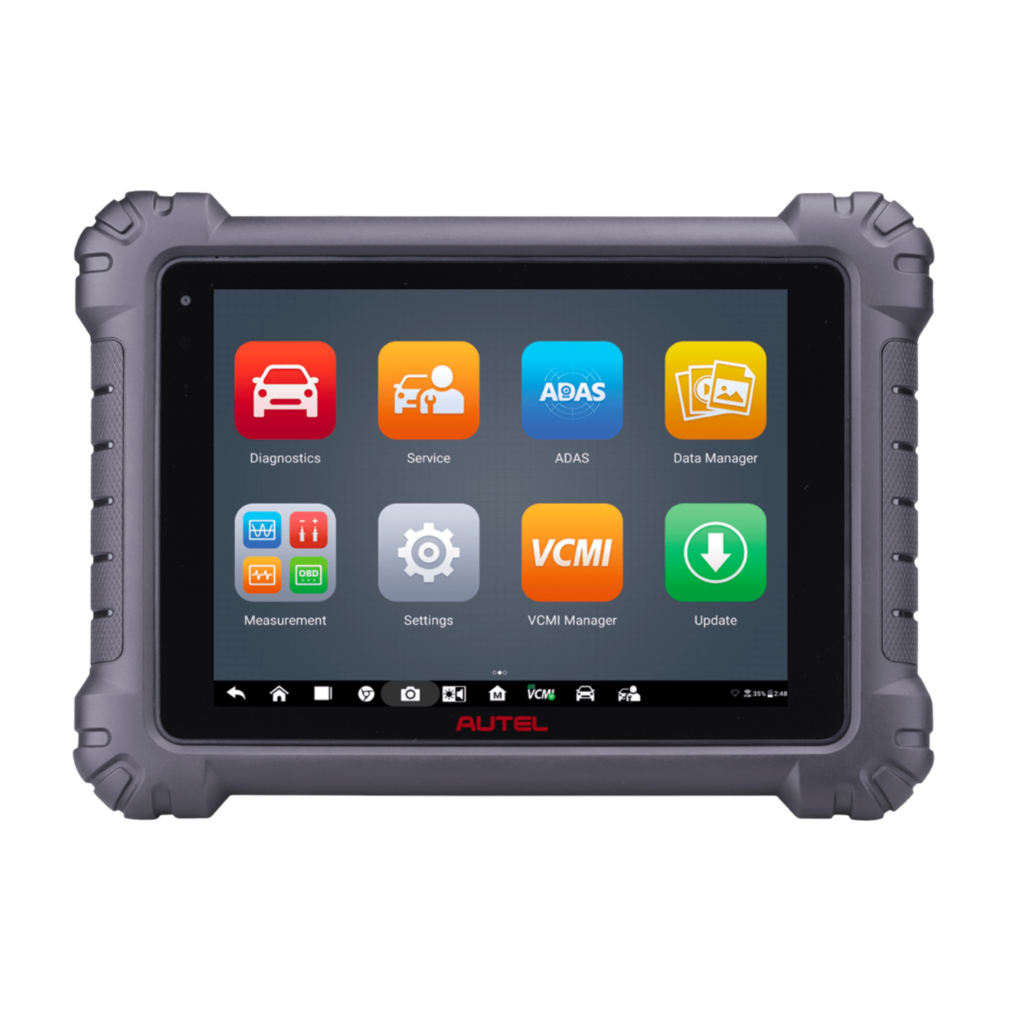

Autel MaxiSYS MS919 S2
The Autel MaxiSYS MS919 S2 is a powerful professional diagnostic platform designed for workshops that require advanced diagnostics, electrical testing and ECU programming in a more compact package than the flagship Ultra S2.
Sharing much of the same software and intelligent diagnostic capability as the MaxiSYS Ultra S2, the MS919 S2 combines dealer-level diagnostics with Autel’s latest MAX AI Assistant, Topology 3.0, enhanced live data analysis and the new MaxiFLASH VCMI2 6-in-1 interface. Its lighter, more portable design makes it an excellent choice for technicians who need flagship functionality without the larger 13.7″ tablet.
Featuring an 11-inch high-resolution touchscreen, Android 13 operating system, powerful 2.7GHz 8-core processor, 12GB RAM, 256GB SSD storage and Wi-Fi 6, the MS919 S2 delivers fast diagnostics, smooth multitasking and rapid software updates.
The supplied MaxiFLASH VCMI2 combines six workshop tools into one compact wireless interface, incorporating:
- Vehicle Communication Interface (VCI)
- J2534 Pass-Thru Programmer
- 4-Channel Oscilloscope
- Digital Multimeter
- Waveform Generator
- CAN Bus Tester
Supporting the latest communication protocols including DoIP, CAN FD, J2534, D-PDU and RP1210, the MS919 S2 is ready for modern vehicle architectures, hybrid vehicles and EVs.
Key Features
- NEW MAX AI Assistant with hands-free voice control
- NEW Topology 3.0 dynamic network mapping
- Full OE-level diagnostics for over 80 vehicle manufacturers
- Complete system diagnostics
- Bi-directional active tests
- ECU coding and programming
- J2534 Pass-Thru programming
- 45+ maintenance and service functions
- Enhanced Live Data Fusion and PID analysis
- Auto VIN identification
- Repair Assist
- DTC Analysis
- Relevant Cases
- Technical Service Bulletins (TSBs)
- Digital Vehicle Inspection (DVI)
- Supports CAN FD, DoIP, D-PDU and RP1210 protocols
- ADAS upgrade capability
- Security Gateway access for supported manufacturers (AutoAuth where required)
MAX AI Assistant
The MAX AI Assistant is Autel’s latest intelligent diagnostic assistant, providing technicians with voice-controlled navigation and AI-assisted diagnostic workflows.
MAX allows technicians to launch scans, access service functions, perform active tests and navigate the tablet using voice commands, helping improve workshop productivity and reduce diagnostic time.
Topology 3.0
Topology 3.0 provides a real-time graphical view of the vehicle communication network, allowing technicians to monitor module communication, identify faulty ECUs and isolate network issues more efficiently.
The enhanced topology view includes module ping testing, improved network visualisation and faster fault identification across multiple communication networks.
6-in-1 MaxiFLASH VCMI2
The supplied MaxiFLASH VCMI2 integrates six professional workshop tools into a single wireless interface:
- Vehicle Communication Interface (VCI)
- J2534 Pass-Thru Programmer
- 4-Channel Oscilloscope
- Digital Multimeter
- Waveform Generator
- CAN Bus Tester
This all-in-one solution reduces the need for multiple standalone tools while providing professional electrical diagnostics and ECU programming capabilities.
Ideal For
- Independent workshops
- Diagnostic specialists
- Auto electricians
- Mobile technicians
- Hybrid & EV specialists
- ADAS workshops
- ECU programming and coding
- Advanced electrical diagnostics
