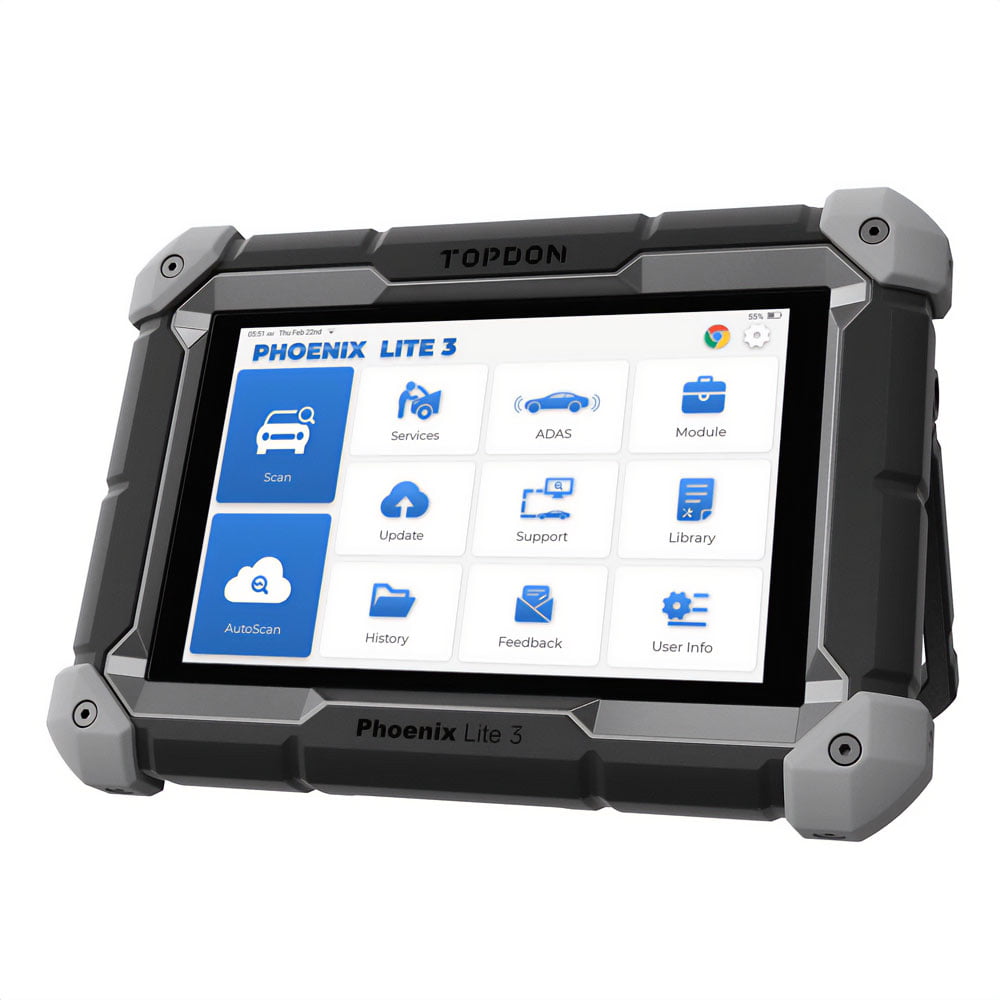

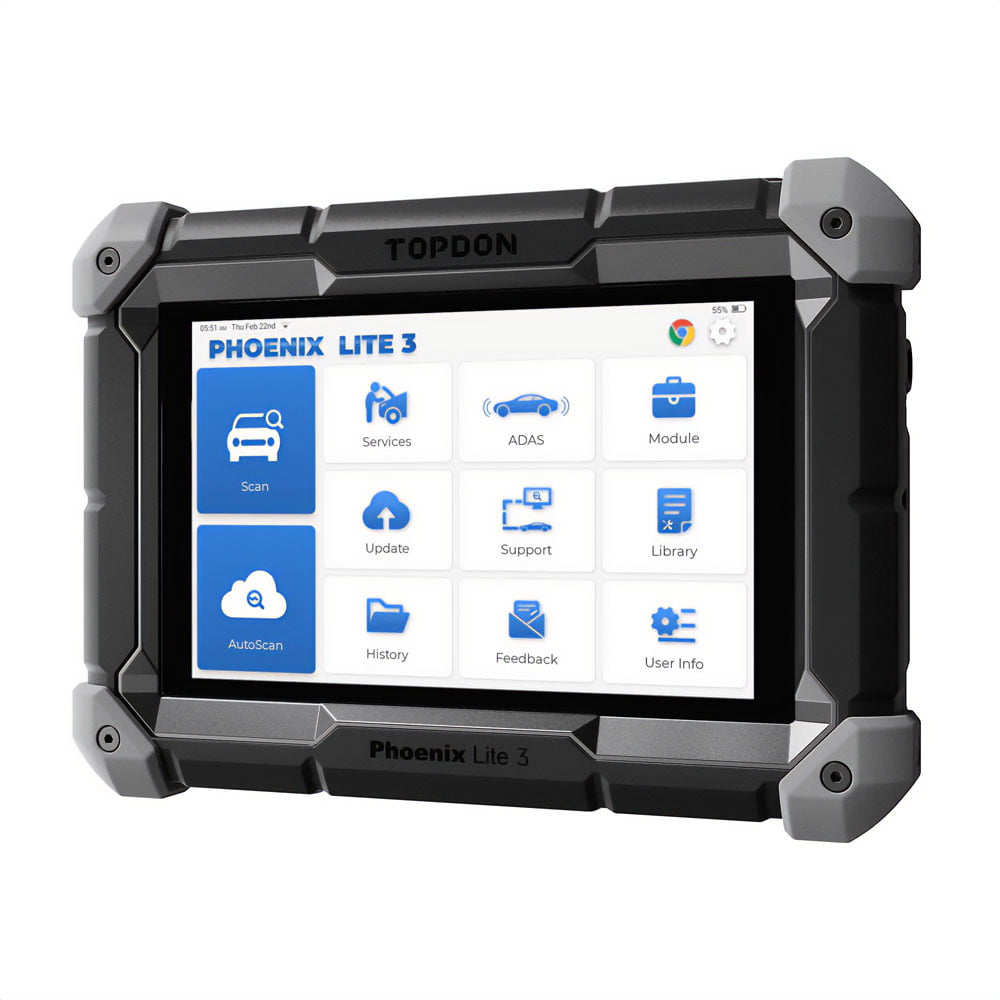

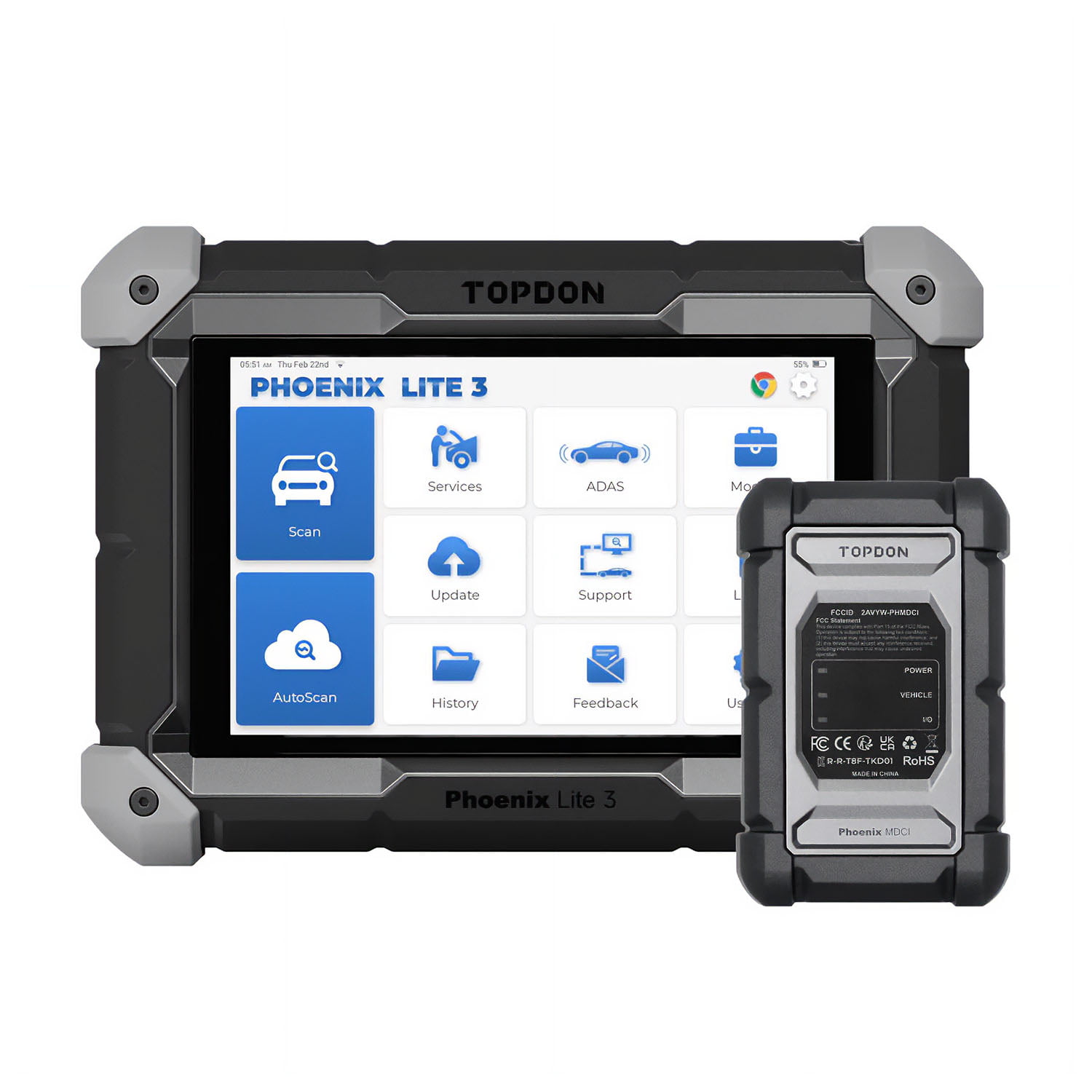

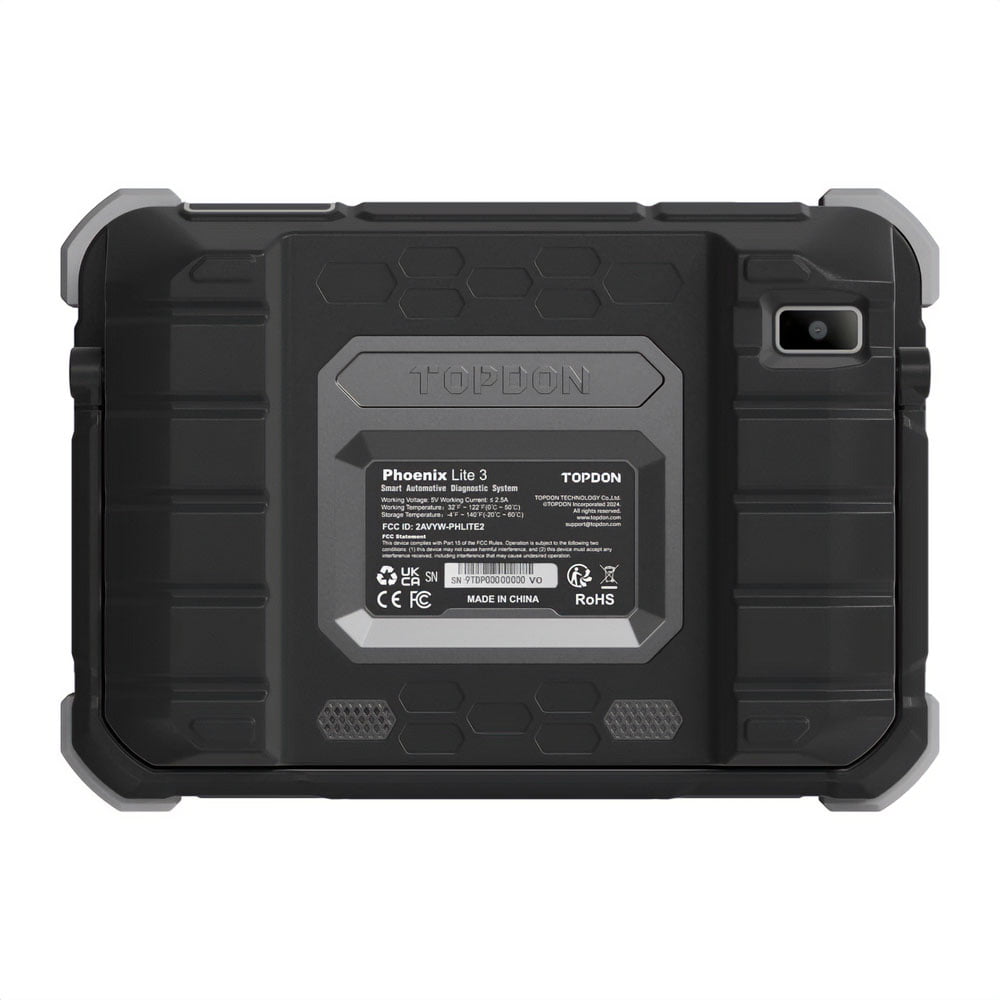

TOPDON Phoenix Lite 3

With advanced features and portability, Read & Clear fault codes with ease.

£945.00 ex. VAT

Available on back-order


The Phoenix Lite 3 is a cutting-edge diagnostic scanner designed for automotive professionals, enthusiasts, and small repair shops. This tool is designed to be streamlined and deployable, when technicians have jobs outside the shop or need to be resolved quickly, the Phoenix Lite 3 is up to the task.


  • Precision Topology Mapping The Phoenix Lite 3 enhances communication efficiency and troubleshooting accuracy by comprehensively depicting the vehicle’s systems and status. Its clear, detailed layout helps users understand the communication structure between modules, enabling quick problem localization and isolation.
  • CAN-FD Protocol Support Supporting the cutting-edge CAN-FD protocol, this automobile diagnostic tool is compatible with more modern vehicles including 2020 and newer GM and Chrysler models.
  • FCA Gateway Access Support for FCA Secure Gateway, for seamless full diagnostics on contemporary cars like Fiat without the need for separate adapters.
  • ECU Online Coding Provides full-system diagnostics for over 168 makes and models, providing insights into all vehicle systems including crucial components like ABS, SRS, Engine, Transmission, ECM, PCM, EPS, PDM, TPM, BCM, and more.
  • OE-Level All System Diagnostics The advanced ECU coding capabilities allow you to unlock hidden functions and disable unnecessary features, optimize engine performance and improve fuel efficiency, ensure seamless work with ECUs and customize the vehicle.
  • Bi-Directional Control Enables swift execution of a variety of active tests. Assess component integrity and functionality, and rapidly identify fault causes for faster and more efficient repairs.
  • 35 Maintenance Functions Coverage of 35 maintenance services like Oil resets, EBP resets, Suspension resets, and more. Supports specialised functions like Add/Replace Key Fobs, Battery Sensor Module learning, and Tire Pressure Sensors learning.
  • Effortless Diagnostics Anywhere Its compact design makes the Phoenix Lite 3 portable and easy to handle for diagnostics anywhere, with Bluetooth support for wireless connectivity.
  • User-Friendly Operation AutoVin reads vehicle information automatically, the VAG guide function provides detailed step-by-step guidance and one-click code read&clear for a streamlined workflow.
  • Data Reporting and Sharing Data streams are presented in easy-to-read graphs, with up to 4 data streams displayable on a single interface for comparison. Detailed diagnostic reports can be generated and shared for data backup.

Vehicle Coverage

A comprehensive list of supported functions and vehicle brands is available on TOPDON’s website.

What’s in the box

  • Phoenix Lite 3 x 1
  • MDCI Dongle x 1
  • User Manual x 1
  • Package List x 1
  • Battery Clamps/Cable Set x 1
  • Cigarette Lighter Cable x 1
  • Fuse ( 5 x20mm) x 4
  • Fuse ( 6 x30mm) x 2
  • Type-C to USB Cable x 1
  • Power Adaptor x 1
  • OBDI Adapter BOX Transfer x 1
  • OBDII Extension Cable x 1
  • BZ-38 (BENZ) Adapter x 1
  • TA-22 (TOYOTA) Adapter x 1
  • TA-17 (TOYOTA) Adapter x 1
  • G/V-12 (GM/VAZ) Adapter x 1
  • B-20 (BMW) Adapter x 1
  • CR-6 (CHRYSLER) Adapter x 1
  • HA-3 (HONDA) Adapter x 1
  • NN-14+16 (NISSAN) Adapter x 1
  • M/H-12+16(MITSUBISHI/HYUNDAI) Adapter x 1
  • FT-3 (FIAT) Adapter x 1


Phoenix Lite 3

Display1280×800 8″ LCD Touchscreen
CPU4-Core 2.0GHz Processor
Operating SystemAndroid 10
Battery12600mAh/3.8v, Approx. 24-hours battery life
Dimensions258 x 183 x 50.5 mm
Weight1.1845 kg
Multilingual Support25 Languages:
English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian, Thai


Working Temperature-10℃ to 50℃ (14℉ to 122℉)
Operating Voltage9 to 18V
Working Current≦ 150 mA
Dimensions127 x 82 x 36 mm
Supported ProtocolCAN-FD

Why buy a Maverick Bundle?

Our bundles pair your OEM tool with a rugged laptop or tablet, known to work perfectly with the brand’s diagnostic software.

This allows us to include the software pre-installed and tested with your tool.

Our bundle benefits also include:

  • Initial 1-hour training
  • Training Videos (30 days)
  • Sales Support
  • OEM Registration Help
