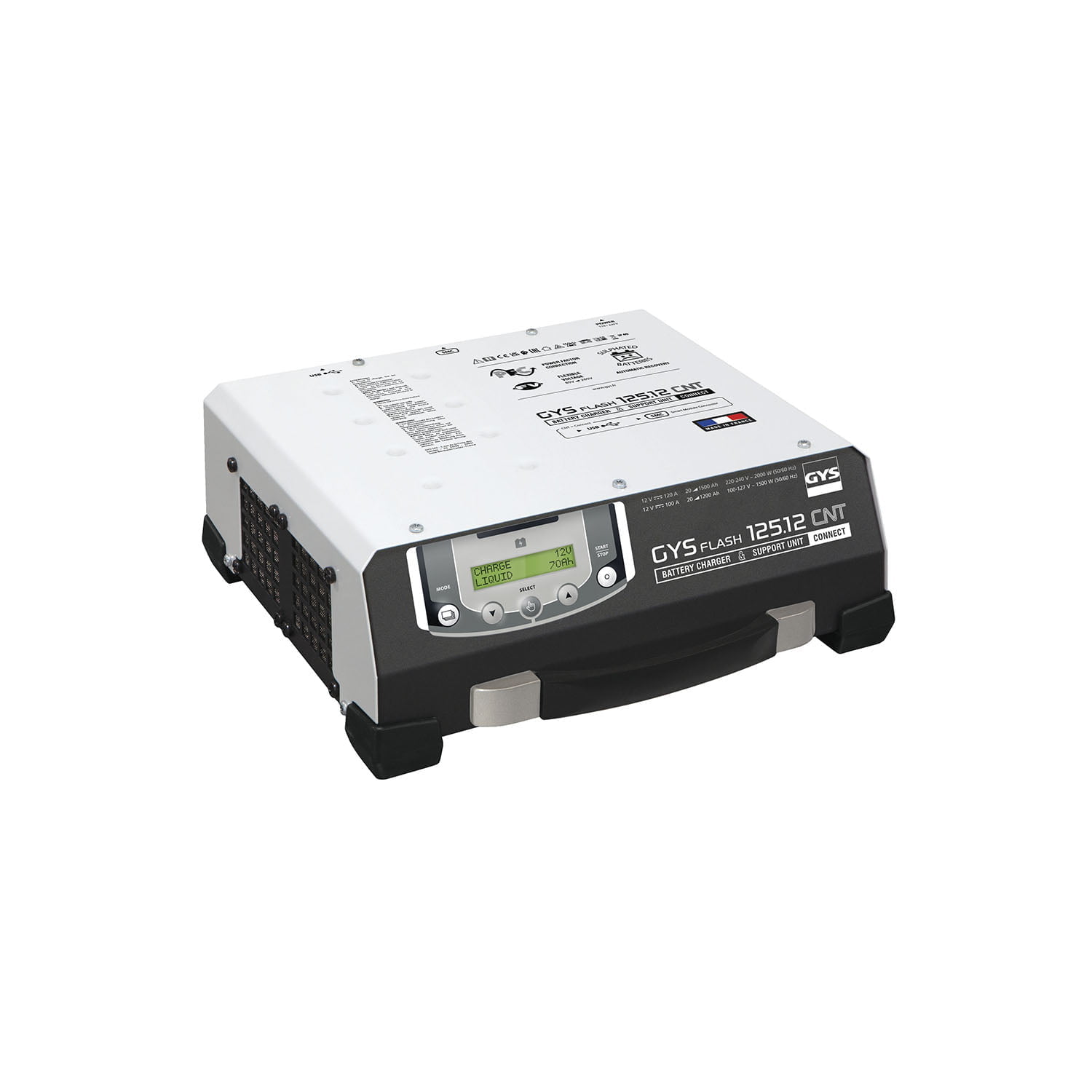

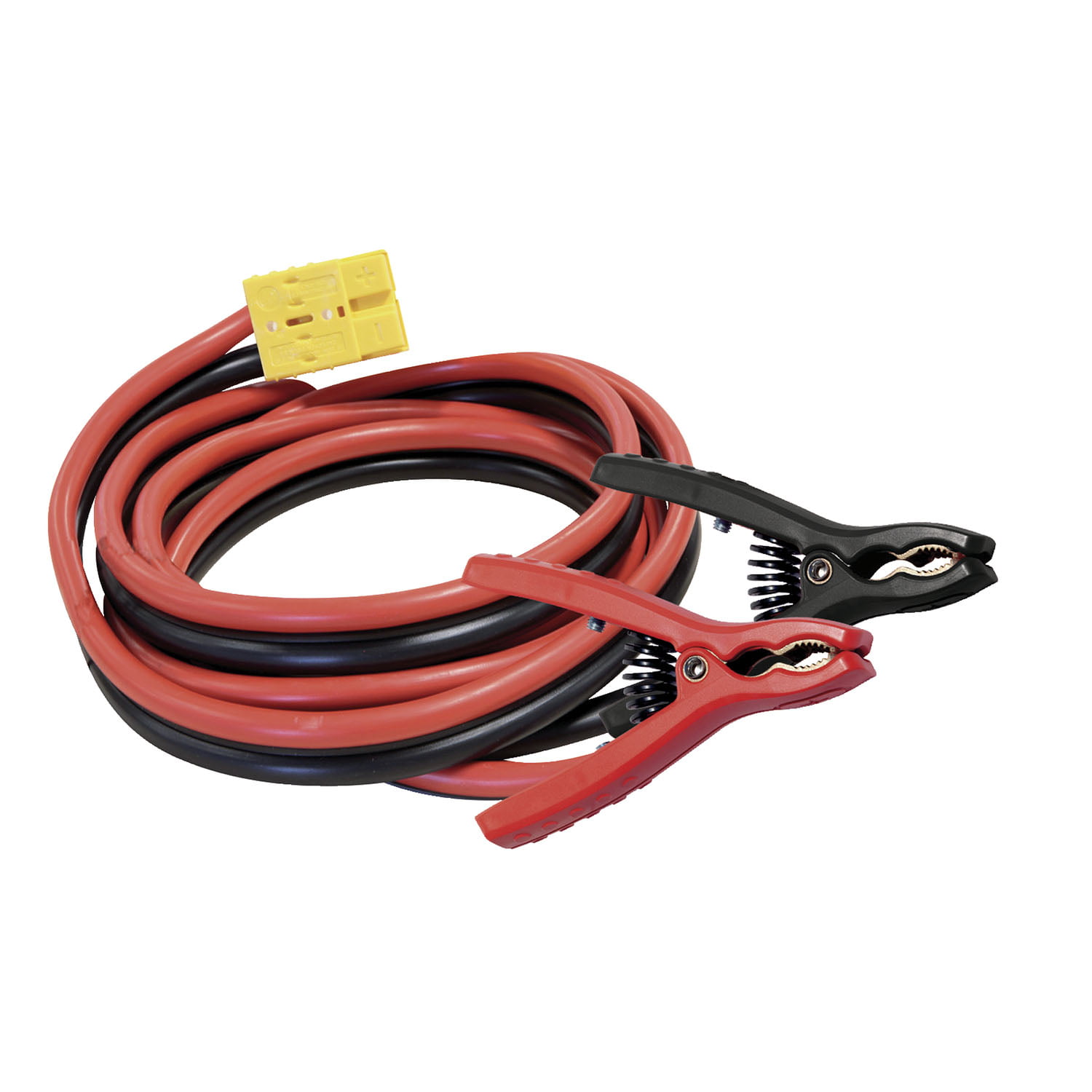

GYSFLASH 125.12 CNT FV with 5m Cables

The GYSFLASH 125.12 CNT FV is a high-powered charger: 120 A continuously at 25°C. It allows to keep a 12 V lead or lithium battery at a perfectly stabilized voltage during the diagnostic phases. It will deliver the best charging cycle recommended for the maintenance of the most advanced vehicles on the market. Its USB connectivity makes it 100% customizable. BMW Recommended battery support unit.

120 amp Battery support unit for workshops and mobile technicians carrying out Diagnostic work on Newer more technically advanced vehicles

Features

4 Operating Modes

1. Charging, for 12 V Lead or Lithium (LFP) batteries from 20 to 1500 Ah.
2. Diagnostics, supports up to 120 A for 12 V batteries in vehicles in the diagnostic phase, in maintenance workshops.
3. Showroom, provides continuous power when using the electrical accessories of a demonstration vehicle. It also manages the optimal charging of the battery.
4. Tester, Allows you to check the battery voltage, evaluate the starting system (starter + battery) and the condition of the vehicle’s alternator.

100% Connected

• Add, delete or modify charging modes and profiles via USB.
• Import predefined configuration files adapted to the load trades.
• Retrieve the charging history and data on a USB stick and use them on a spreadsheet.
• Connect additional modules (printer, barcode reader, etc.) via its dedicated module socket (SMC: Smart Module Connector).

Automatic Charge

• Extends the life and performance of Lead (gel, AGM, liquid, calcium, etc.) and Lithium (LFP) batteries.
• Specific charging curve in 8 steps (lead battery) or 9 steps (lithium-iron-phosphate battery) without supervision.
• Recovers deeply discharged batteries >2 V (automatic SOS Recovery)

Technologies & Advanced Functions

• Flexible Voltage, the charger operates with a supply voltage between 85 and 265 V.
• Auto-Detect function automatically starts a charge when a battery is connected to the charger.
• Auto-Restart function in the event of a power failure with the memory of the settings.
• Control and calibration of cables
• Locking, avoids the risk of improper handling, ideal for garages and exhibition halls.
• 12 charging profiles available, including the Easy profile for simplified charging suitable for all lead batteries.

Ultra-Secure

• Protection of the vehicle’s onboard electronics: protection against short circuits, polarity reversal and overcharging. Spark prevention system.
• Replaceable fuse which protects against misuse.
• Temperature sensor to prevent internal electronics from overheating.

Ergonomic

• Durable case with shock and vibration absorbing pads.
• IP40 enclosure, protected against the intrusion of objects larger than 1 mm.
• Low height (13 cm) for the loader to pass under a vehicle.
