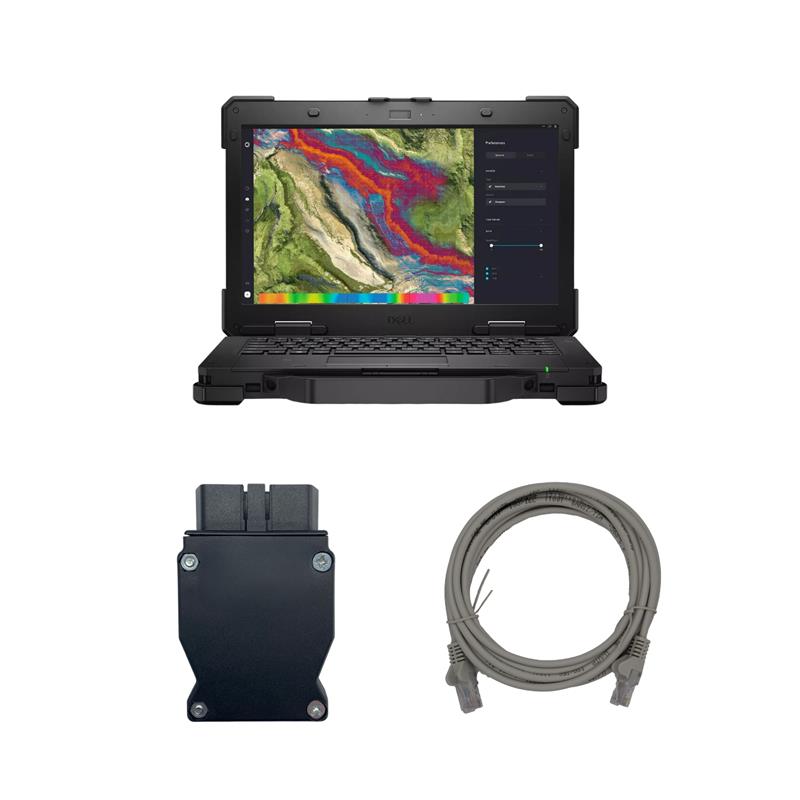

The NEW SMART Dealer Diagnostic Bundle is a complete, dealer-level diagnostic package built for DoIP-enabled vehicles. Designed for professional workshops, it combines robust hardware and a reliable laptop into one ready-to-use kit, ensuring seamless communication with supported vehicle platforms.
Specifications
SST4650023 DoIP J1962–RJ45 Adapter
Interface: OBD-II (male) to RJ45 Ethernet socket (8-pin, 1:1 connection)
Assigned Pins: RX+, RX-, TX+, TX-
Size: 75 mm compact design
Protocol: DoIP (Diagnostics over IP)
3 Metre CAT6A Cable
Type: Shielded CAT6A RJ45 cable
Length: 3 metres
Data Rate: Up to 10 Gbps
Frequency: 550 MHz
Contacts: 50µ” gold-plated RJ45 connectors
Construction: Snagless boot with strain relief for durability
New Maverick X14M Rugged Laptop
- Operating System: Windows 11 Pro
- Processor: Intel® Core™ Ultra 7 155H (16 cores, up to 4.8 GHz)
- Graphics: Intel® Xe LPG integrated graphics
- Memory & Storage: 32 GB DDR5 RAM and 512 GB SSD storage for fast, stable multitasking
- Rugged Design: Certified to MIL-STD-810H and IP65, resistant to dust, vibration, and temperature fluctuations
- Display: 14” Full HD (1920×1080) IPS sunlight-readable display (1000 nits), optional 10-point touch and glove operation
- Battery: Dual hot-swappable batteries (53 Wh + 14.4 Wh) for continuous field operation
- Connectivity:
1 × HDMI 2.0a (mini)
1 × USB 3.2, 1 × USB 3.0, 1 × USB 2.0, 1 × USB Type-C (Thunderbolt 4)
2 × RJ45 Ethernet ports (10/100/1000M adaptive)
1 × RS232 Serial Port (essential for legacy diagnostic tools)
1 × MicroSD slot, 1 × SIM slot, 1 × 3.5 mm audio jack
- Wireless Communication: Wi-Fi 6, Bluetooth 5.1, integrated GPS, optional 4G/5G module
- Security: Built-in fingerprint reader, optional NFC module, and anti-theft lock slot
