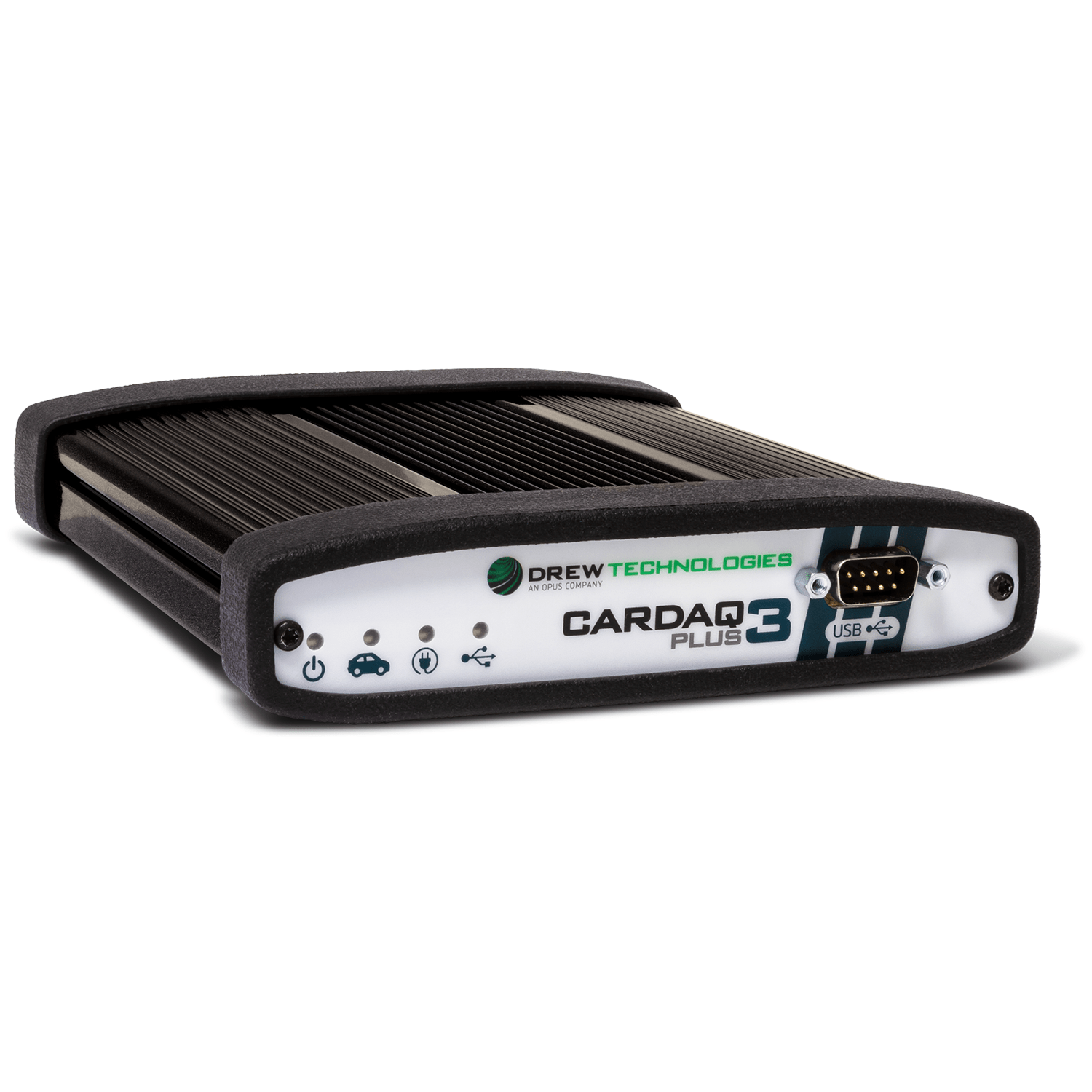

CarDAQ Plus 3
• FCA – Wi-Tech 2.0
• Ford – Ford J2534 Diagnostic System (FJDS) & Ford Diagnostic and Repair System (FDRS)
• GM – Global Diagnostic System (GDS2)
• GM – Tech2Win (PC-based Tech2 software)
• Honda – Honda Diagnostic System (i-HDS)
• Jaguar/LandRover – Integrated Diagnostic Software (IDS) & Symptom-Driven Diagnostics (SDD)
• Mercedes-Benz – XENTRY J2534 Pass-Thru
• Mistubishi – Multi-Use Tester III Special Edition (MUT3–SE)
• Nissan – Consult III Plus R2R
• Subaru – Subaru Select Monitor 4 (SSM4)
• Toyota – TechStream
• VW/Audi (VAG) – Offboard Diagnostic Information System (ODIS)
• Volvo – Volvo Information and Diagnostics for Aftersales (VIDA)
SAE J2534-1: CarDAQ-Plus 3 is the most advanced device for reprogramming of ALL OEM with the use of their OEM provided software.
SAE J2534-2: CarDAQ-Plus 3 offers extra J2534-2 support that expands reprogramming beyond just the Engine/Trans modules for GM, Ford, Chrysler, Toyota, Honda, Audi, VW, BMW, Volvo and more.
Fully supported SAE J2534-1 and J2534-2 device with even more advanced support including: CAN FD, 4 CAN Channels, v05.00 API and DoIP.
• CAN FD: Supports Flexible Data Rate CAN.
(being introduced in the near future).
• J2534 v05.00 API: The newest version of J2534 to give you the latest in pass-thru technology.
• 4 CAN Channels: Going beyond the 3 required by select Chrysler/FCA models. CarDAQ-Plus®3 also provides a 4th to meet the needs of future OEM applications.
• DoIP: Automotive Ethernet for advanced vehicle communications.
Product Specifications:
- Operating voltage: 7 – 36 Volts
- Dimensions (approx.): 6.5″D x 6″W x 1.5″H
- Operating Temperature: Commercial Range (0 C to +70 C)
- Warranty: 1 year on Hardware. cables 90 day warranty
Bus Protocols:
- CAN Bus (Capable of CAN FD, ISO 15765, GMLAN, J1939, and ISO14229)
- 3 CAN channels (FD CAN, Dual Wire)
- 1 Single wire CAN
- Ford SCP (J1850PWM)
- GM Class2 (J1850VPW)
- KWP2000 (ISO9141/14230)>
- Chrysler SCI (J2610)
PC Interface:
- USB version 1.1 or higher
Other Information:
- Compliant to SAE J2534 (Feb 2002) and SAE J2534-2 (Dec 2004)
- Compliant to ISO 22900-11MVCI physical layer
- Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14, or Aux
- Ground pins 9, 12, or 15
Operating System Compatibility:
- Supports Windows Vista (32/64-bit), and Windows 7 (32/64-bit)), Windows 8 (32/644-bit), Windows 10 (32/64-bit).
