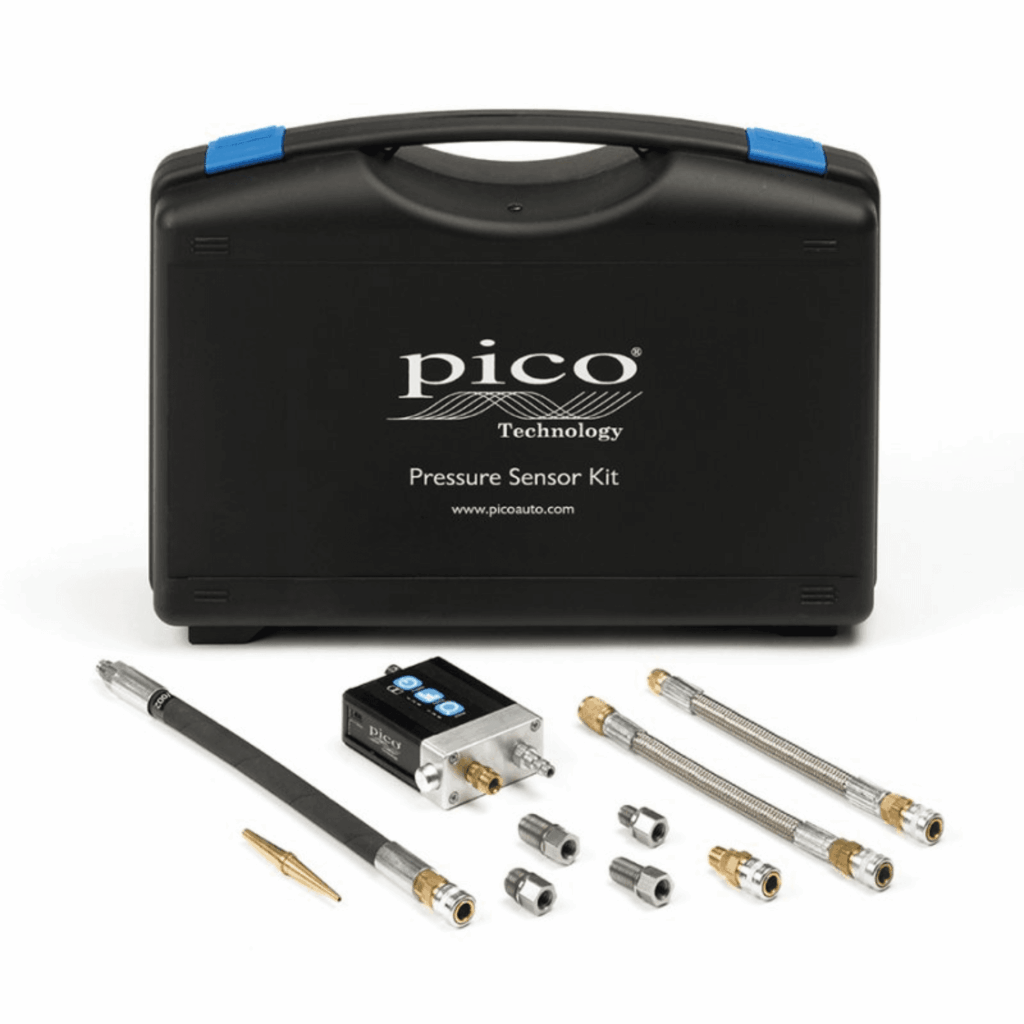

WPS500X Automotive Pressure Testing Kit (PP939)

The WPS500X Automotive Pressure Testing Kit (PP939) delivers uncompromising accuracy for pressure diagnostics across multiple automotive systems. It comes with a range of innovative features, it allows you to measure pressure up to 500 psi with ultra-fast, 100 µs response times, capturing critical details for effective diagnostics.

• High Precision: Measures up to 500 psi with 1% accuracy, ensuring accurate diagnostics
• Three Pressure Ranges: Versatile settings to handle high-pressure, medium-pressure, and low-pressure applications, including cylinder compression, fuel, and exhaust analysis
• Enhanced Analysis: A unique zoom function isolates specific pressure signals, enhancing visibility for vacuum and fuel injector diagnostics
• Rechargeable LiPo Battery: Built-in for convenient, long-lasting performance

Pressure Ranges

The WPS500X kit offers three configurable pressure ranges:

• High Pressure (Range 1) – Best for cylinder compression and fuel pressure tests, aiding in cam timing diagnostics and detecting compression anomalies.
• Medium Pressure (Range 2) – Suitable for vacuum and fuel system tests, with zoom functionality to identify valve and injector performance.
• Low Pressure (Range 3) – Accurate for analyzing exhaust pulses and small pressure variances with high sensitivity.

Specifications

• Response Time: 100 µs from 0% to 90% full scale
• Accuracy: 1% of scale on Ranges 1 and 2; 5% on Range 3
• Battery Type: LiPo (integrated, rechargeable via USB)
• Dimensions: 133 x 74 x 30 mm; Weight: 332 g
• Temperature Range: Operates between 0 – 60°C (32 – 140°F)
• Environmental Protection: Splash-resistant against automotive fluids (not immersion-proof)

Compatibility

The WPS500X works with various automotive lab scopes, including PicoScope, Snap-on, and Fluke ScopeMeters. (Note: For scopes with banana inputs, a BNC-Banana adapter is required.)

Note: Additional adapters for older and specific engines are available separately.

Why Buy?

The WPS500X Automotive Pressure Testing Kit provides you with unparalleled diagnostic capabilities in one versatile tool. Unlike traditional transducers that may require multiple units for different tests, the WPS500X offers three pressure ranges and a unique zoom function, making it adaptable to virtually any automotive pressure analysis.

With high sensitivity, a robust build, and compatibility with most lab scopes, this kit ensures accurate, time-efficient diagnostics for professional-grade results. When performance, precision, and convenience matter, the WPS500X stands out as a cost-effective and all-in-one solution for advanced pressure analysis.
