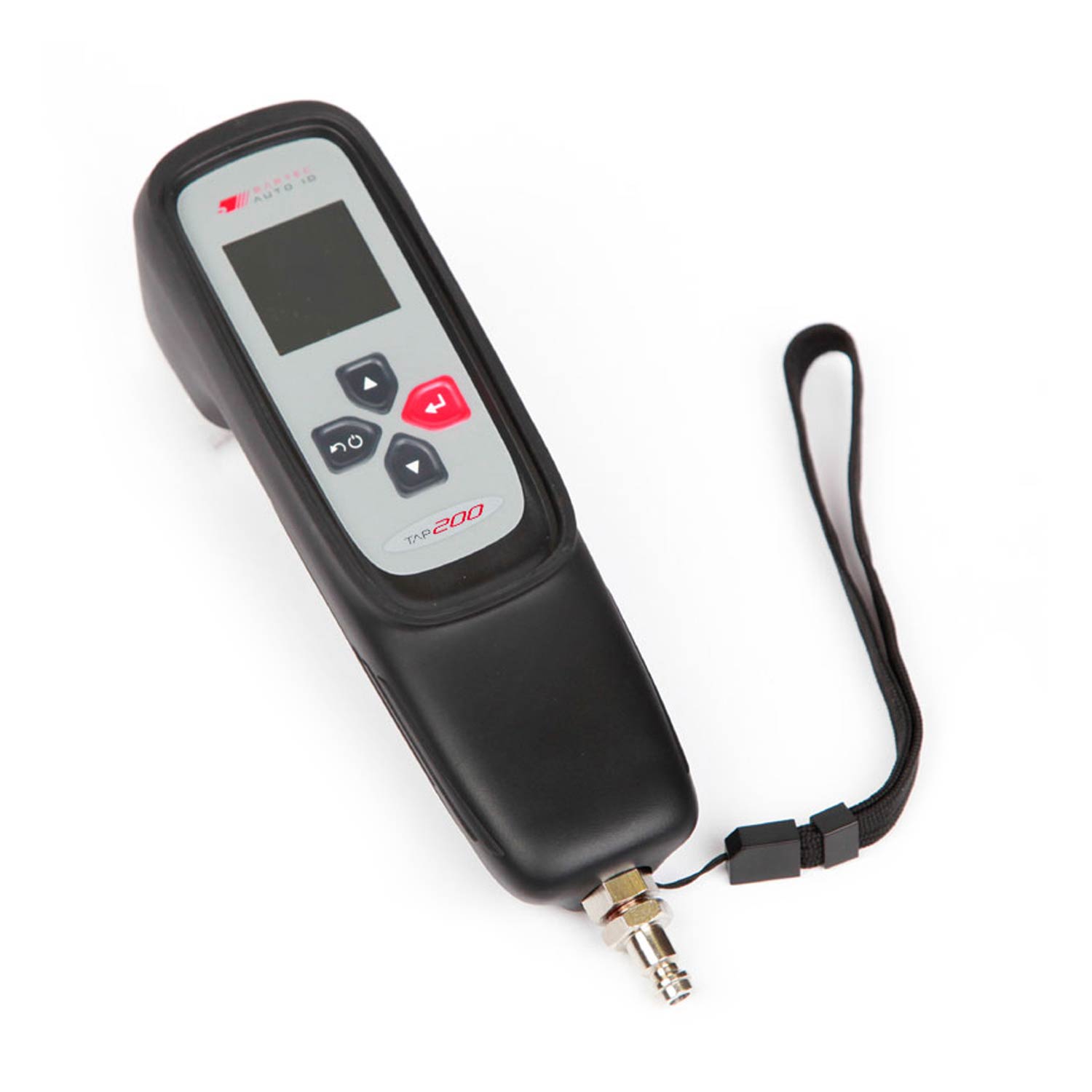

Bartec TAP200 Tread & Pressure Reader Kit

£1,249.13 ex. VAT


Designed for commercial vehicles and fleet inspections, the Bartec TAP200 integrated hand held Tread Depth and Pressure tool with colour display. Easy-to-use colour coded graphics with Bluetooth communications to Bartec’s FREE TPMS Desktop software package.


The TAP (Tread & Pressure) Reader is designed to give fast accurate results. It can eliminate the paperwork involved in collecting data and reporting the results to the customer. Using a colour coded warning system the tool shows when tyres are legal and when replacement is recommended. The highly accurate tool enables the tyre shop to advise the customer how long he can keep running his tyres before replacement is required, thereby maximising tyre life and offering real value to the customer. The results of the tread and pressure test can be uploaded via Bluetooth to a PC or tablet so that the colour coded warnings can be displayed for the customer thereby reassuring them of their legitimacy. This leads to increased tyre and parts sales, and customer retention.


  • 25mm replaceable steel pin with profiled end
  • High resolution, sunlight readable, 1.6” colour graphics display 240 * 240 pixels
  • Simple, intuitive, menu-driven software
  • Rugged ABS/Polycarbonate enclosure resistant to automotive fluids
  • Rated IP54 for water and dust ingress

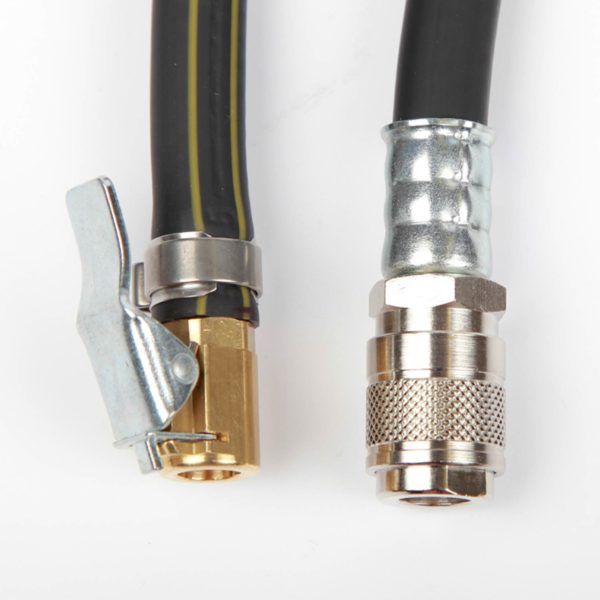

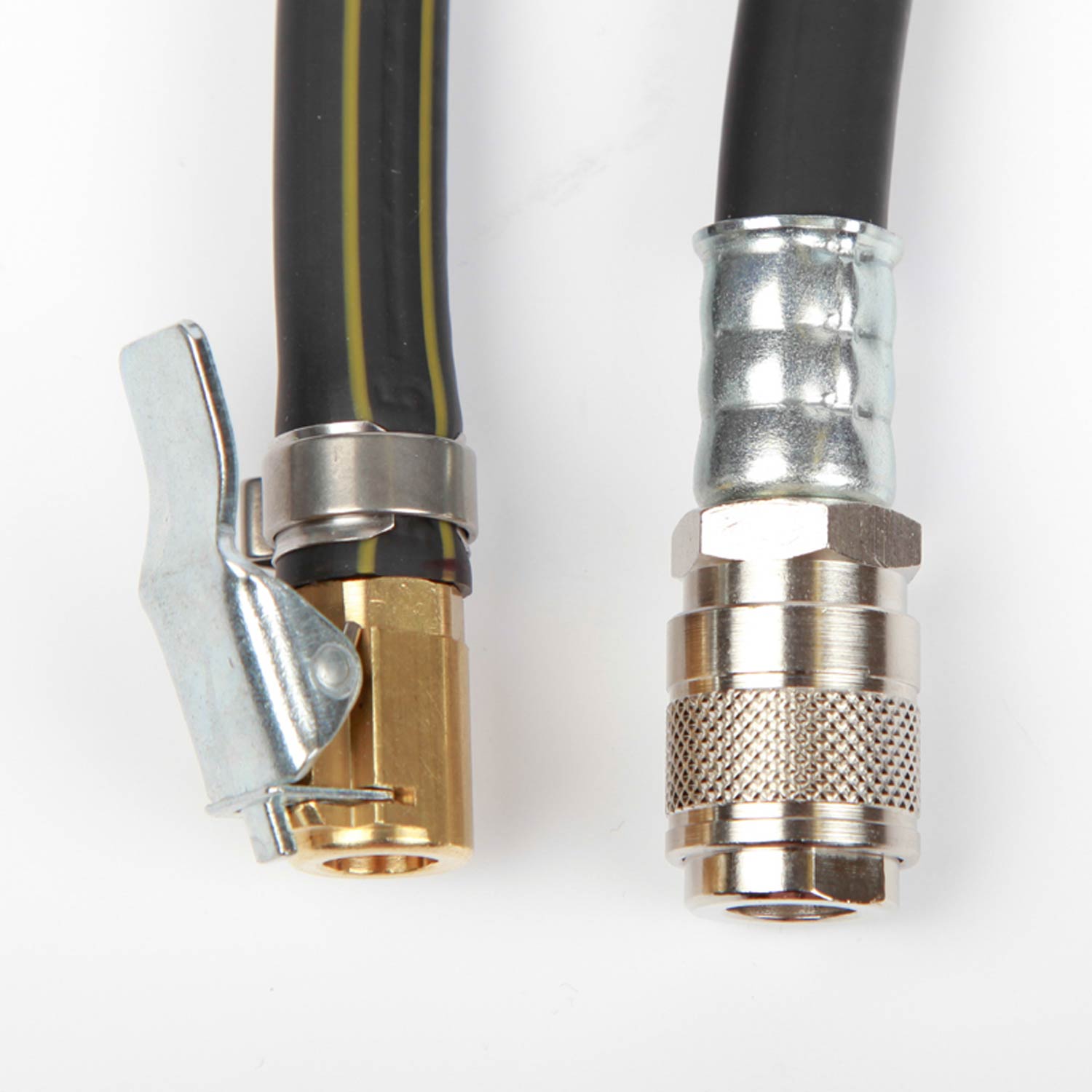

  • Quick release lightweight pressure hose
  • Built in electronic pressure gauge
  • Rechargeable Lithium battery – wireless charging

Technical Specification

  • High resolution colour display, sunlight readable
  • Silicone rubber boot for added protection
  • Maximum tread depth 25mm
  • 0.01mm accuracy version for UK MOT testing – EINYA19863-0717005
  • Pressure range 0-10bar (0-150PSI)
  • Pressure accuracy +/-0.07bar (+-1PSI)
  • Bluetooth for wireless data transfer
  • Wireless charging
  • Operating temperature 0 to 40°C
  • Built in lamp for illuminating tyre surface

What’s In The Box

  • Bartec TAP200 Tool
  • Hose
  • User manual
  • Wireless wall charger
  • USB cable
  • Tool case

Why buy a Maverick Bundle?

Our bundles pair your OEM tool with a rugged laptop or tablet, known to work perfectly with the brand’s diagnostic software.

This allows us to include the software pre-installed and tested with your tool.

Our bundle benefits also include:

  • Initial 1-hour training
  • Training Videos (30 days)
  • Sales Support
  • OEM Registration Help
