Loki Tesla Diagnostic Kit

The Loki Tesla Diagnostic Tool is the first supported aftermarket Tesla tool, used to carry out diagnostics, repair and configuration of Tesla vehicles. The Loki comes with its custom-built user-friendly interface, automatic software updates and features like Live data from CAN, self-testing and calibration, and read and clear alerts.

Requirements

Tesla does not have standard diagnostic connectors, FYI the ODB connector on an early model X does nothing. You will need training to connect and use the tool; in some cases, vehicle disassembly is needed. The diagnostics laptop/PC needs to have several individual configurations done at use; this is included in the bundle price.

The software can be used on Windows 10 and 11.

Option “Y “cable is available for permanent installation in models 3 and model Y as the connection requires dismantling the glove box to access CID IC.

The tool will require registration with LOKI before the software is unlocked.

No ongoing software cost, there will be a cost for future upgrades TBA

Features

• Live Data from CAN – Battery Management System, Drive Inverter, Charge Port, Autopilot and many more.
• Read & Clear Alerts – Loki has a function of reading and decoding plus clearing alerts and crash codes.
• Free Software Updates – Loki comes with free regular software updates to stay up to date with the latest Tesla version
• Self-Test & Calibrate – Self-testing of important blocks and systems of the car and calibration of the steering column, radar and more.
• Key Programming – Model 3, Y, S & X key programming for all keys lost on Tesla vehicles via CAN

What’s New in Software Version 2.7.0

LOKI’s latest software update (v2.7.0) adds powerful new functions for Model 3/Y, S, and X vehicles:

• New key learning method for Model 3/Y — no certificate needed
• Ability to flash blank VCSEC modules (2021–2024)
• Unlock diagnostic ethernet (Diag Port) via CAN, no disassembly required

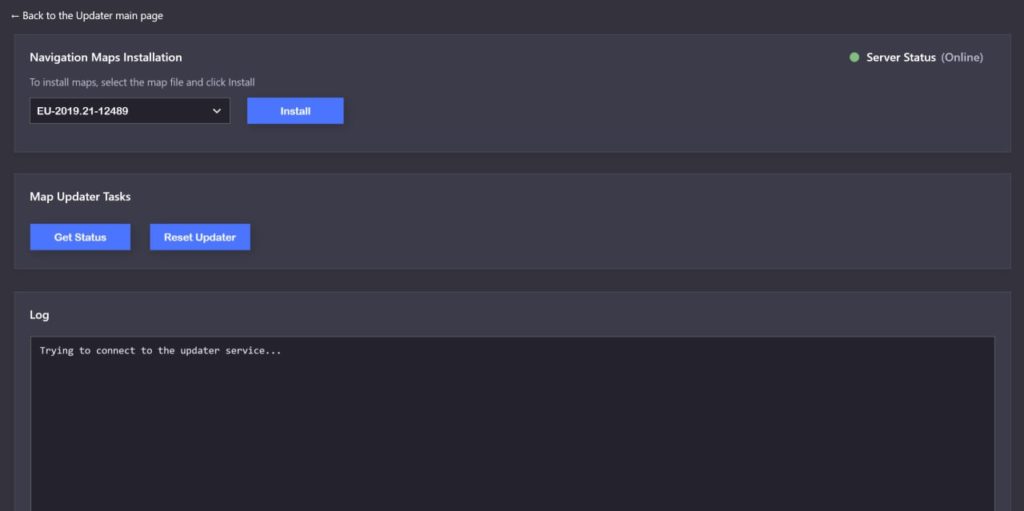

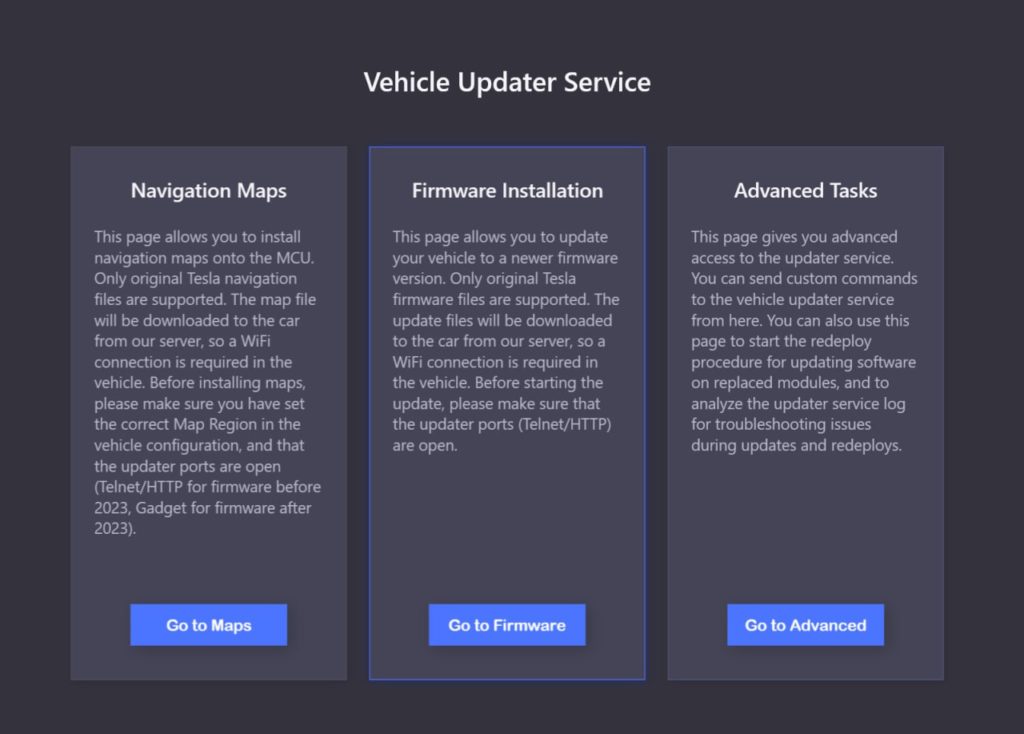

• Install navigation maps (Intel/AMD) without blocking system updates
• Activate Service Mode via CAN — especially useful for China-market Teslas
• Read/write Secured Configuration on S/X (MCU1/2) using only LC005 cable

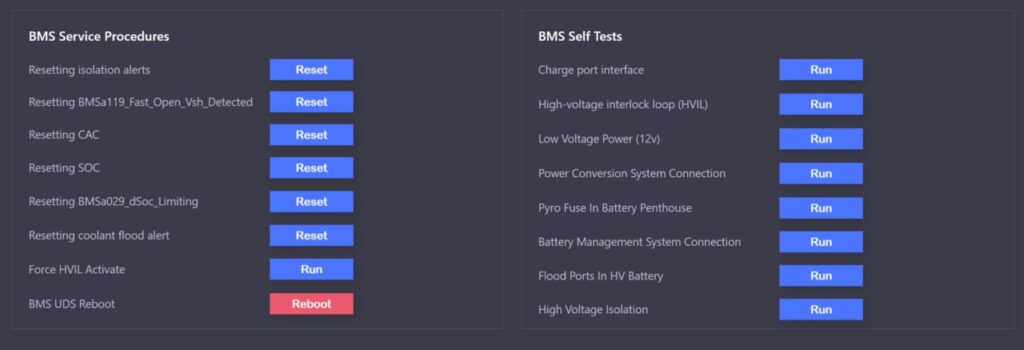

• Reset isolation/service alerts on Model 3/Y and BMS_w023 on Model S/X

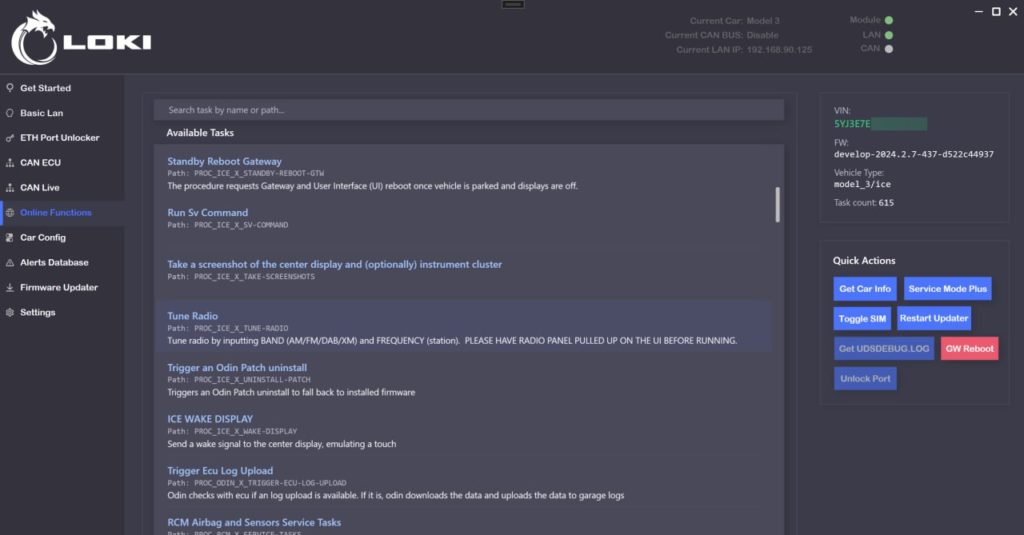

• Improved CAN usability and redesigned UI pages for smoother navigation

These updates improve speed, convenience, and flexibility when working on the latest Tesla hardware and firmware.

Secured Configuration Plugin

Secured config is currently available on: M3 (<2020) and MS\MX with MCU1\2 (MS & MX works only with dumps reading through PEMicro). Secured Configuration plugin allows you to modify the following parameters:

• VIN – Vehicle identification number (VIN) is required when changing the MCU or using donor certificates.
• Country – Change country configuration, necessary for changing headlight flashing algorithms to European standards, adapting cars for the Asian market to European standards.
• Autopilot – Change autopilot type, for example, to FSD.
• SuperchargingAccess – Activation of supercharger access (v1, v2).
• PerformancePackage – Activation of Performance or Acceleration Boost depending on motor types.
• ConnectivityPackage – Lifetime activation of Premium Connectivity.
• SoftRange – Removing software battery capacity restrictions where applicable.
• ImmersiveAudio – Activation of additional audio system features.
